My furnace used to fire up, run for about five seconds, and quit. Over and over. I chased the wrong parts for two winters before a technician pointed at a thin metal rod near the burner and said, “That’s probably it.” He was right, and it cost me nothing but ten minutes and a scrap of sandpaper.
The flame sensor is one of the smallest components in a gas furnace, and it causes an outsized share of the “won’t stay on” calls homeowners deal with every fall. It’s a thin metal rod, usually a few inches long, positioned right in the burner flame. Its whole job is to confirm the furnace is actually burning gas. No confirmed flame, no continued gas flow — the system shuts itself down as a safety measure, and it does it fast.
What follows is the actual process: how to find the sensor, tell whether it needs cleaning or full replacement, and get it back in correctly. Most of the time this is a homeowner-doable repair. Occasionally it isn’t, and I’ll flag where that line sits.
How a Flame Sensor Actually Works
A flame sensor doesn’t detect heat and it doesn’t detect light. It works through a principle called flame rectification — the sensor rod sits directly in the flame, and a burning flame conducts a very small electrical current back through the rod to the control board. That current is tiny, usually measured in microamps, but it’s enough for the board to know combustion is happening.
I’ve tested this myself with a multimeter set to DC microamps, and a healthy sensor typically reads somewhere in the 2 to 6 microamp range depending on the furnace model. Drop below the manufacturer’s minimum threshold, and the control board assumes there’s no flame, even if there clearly is one. It cuts gas to protect against exactly the failure mode a flame sensor exists to prevent: gas flowing without ignition.
That’s the part people find counterintuitive. The furnace isn’t malfunctioning when it shuts off on a bad sensor. It’s doing exactly what it’s designed to do with bad information. The actual malfunction is upstream — usually just a layer of buildup on the rod itself.
Symptoms of a Failing Flame Sensor
The signature symptom is short cycling tied specifically to ignition. The burners light, you can see or hear the flame, and then somewhere between three and ten seconds later, everything shuts off. Wait a minute or two and it’ll often try again, light, and repeat the same short burn. That repeating pattern — light, run briefly, die, repeat — is close to a fingerprint for this specific part.
It’s worth separating this from a furnace that won’t ignite at all. If you’re getting no flame whatsoever, that points toward the ignitor, the gas valve, or the pilot assembly on older units — different problem, different fix. A flame sensor issue almost always involves visible or audible ignition followed by a shutdown, not a failure to ignite in the first place.
Some systems will also flash an error code on the control board or thermostat tied to flame sensing or flame loss. Not every furnace has this diagnostic light, and codes vary by brand, so check your model’s manual if you’re not sure what a blinking pattern means.
What Causes a Flame Sensor to Fail
Almost never does the sensor itself electrically fail. What happens instead is buildup — a layer of carbon and metal oxidation forms on the rod’s surface over a heating season or two, and that layer acts as an insulator. It blocks the tiny current the rod is supposed to conduct, even though the rod underneath is perfectly fine.
This is why the fix, most of the time, is cleaning rather than replacement. I’ve seen this go wrong when people assume a short-cycling furnace means a part has died and jump straight to ordering a new sensor, when thirty seconds with an abrasive pad would have solved it. Furnaces that run infrequently, houses with pets, or systems overdue for a seasonal tune-up tend to build this coating faster.
Genuine sensor failure does happen eventually — the rod can crack, the ceramic insulator around the base can degrade, or the wiring connector can corrode. But that’s typically a multi-year-down-the-line issue, not a first troubleshooting step.
Locating and Removing the Sensor
Turn off power to the furnace at the switch before doing anything — most furnaces have a dedicated wall switch nearby that looks like a light switch, separate from the thermostat. Shut off the gas supply too if you’re planning to remove the sensor rather than just inspect it. Open the furnace’s access panel, usually held by a couple of screws or clips on the front lower section. The burner assembly sits behind it, and the flame sensor is the thin metal rod positioned just in front of or slightly to the side of the burners, held in place by a single mounting screw.
Most people miss this entirely, but the sensor is not the ignitor. The ignitor is usually a thicker, glowing element (on hot surface ignition systems) positioned to light the gas. The sensor is downstream of that, thinner, and doesn’t glow at all. Confusing the two and cleaning or removing the wrong part is a common early mistake.

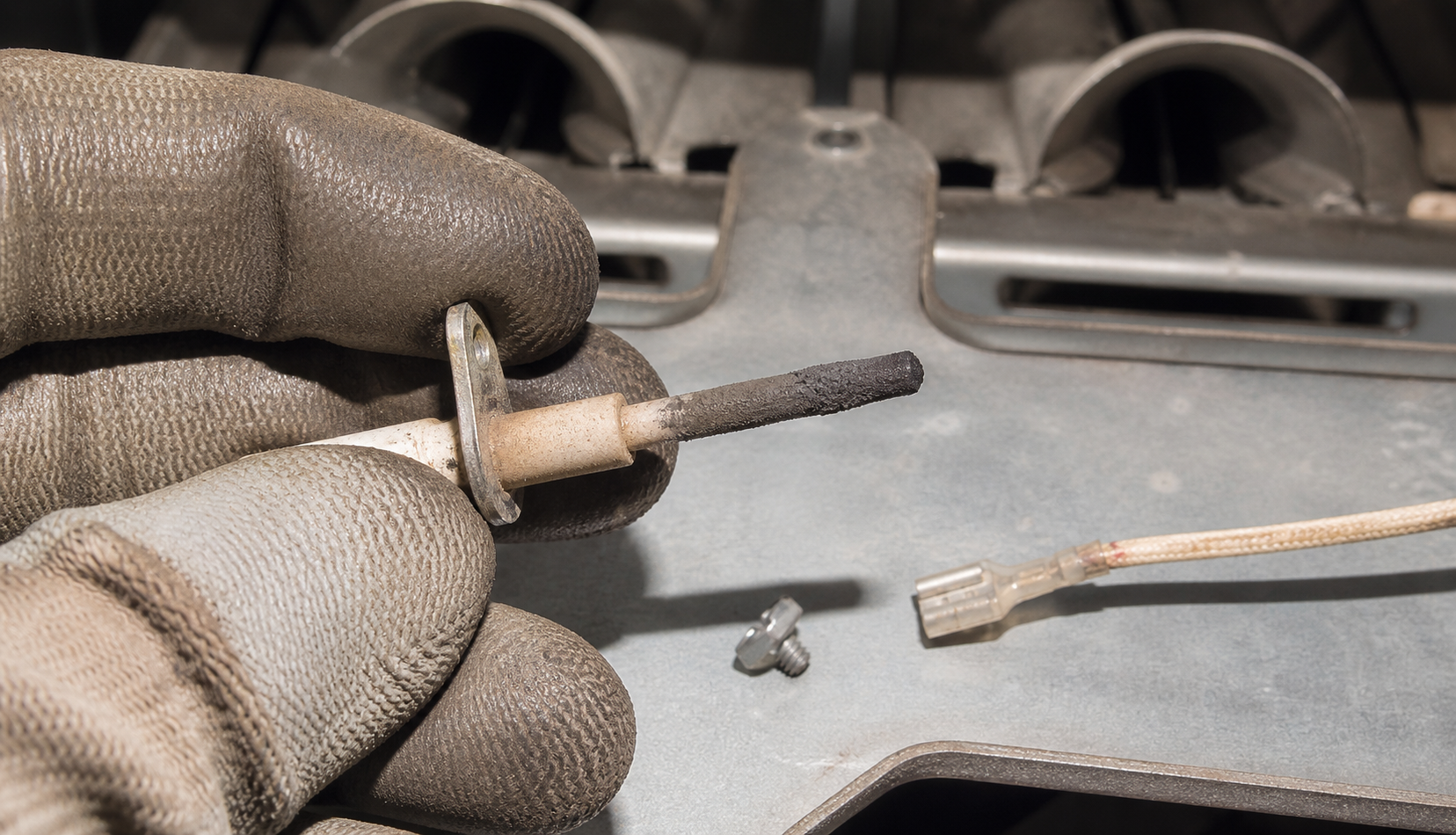

Remove the single mounting screw, disconnect the wire lead from the sensor’s connector, and slide the rod out. It should come free with light pressure. If it’s seized or the porcelain insulator looks cracked at the base, stop and don’t force it — a cracked insulator usually means replacement rather than cleaning.
Cleaning vs. Replacing
Once the rod is out, look at the metal surface. A thin gray or black film is completely normal and is exactly what you’re there to remove. Use fine steel wool, a bit of emery cloth, or even fine sandpaper — nothing coarse enough to gouge the metal. Gently work over the entire exposed portion of the rod until it’s back to bare, shiny metal. Wipe away any dust with a dry cloth afterward. Don’t use water, cleaning sprays, or anything with a coating or residue — you want bare metal, not a wet or chemically treated surface going back into a flame.
If the rod looks pitted, warped, or if the ceramic base around it is chipped or cracked, cleaning won’t help. That’s a replacement situation. Flame sensors are inexpensive — generally somewhere in the ten to thirty dollar range depending on brand and furnace model — and they’re a direct swap using the same mounting screw and wire connector as the original. When ordering a replacement, match the part number stamped on the old sensor or found in your furnace’s manual rather than assuming a universal one fits. Sensor length and mounting angle vary enough between manufacturers that a mismatched part can sit at the wrong distance from the flame and cause the exact short-cycling problem you’re trying to fix.
Reinstalling and Testing
Slide the sensor back into its mounting bracket, replace the screw, and reconnect the wire lead firmly — a loose connection here mimics the same short-cycling symptoms as a dirty rod, so it’s worth double-checking before you close anything up.

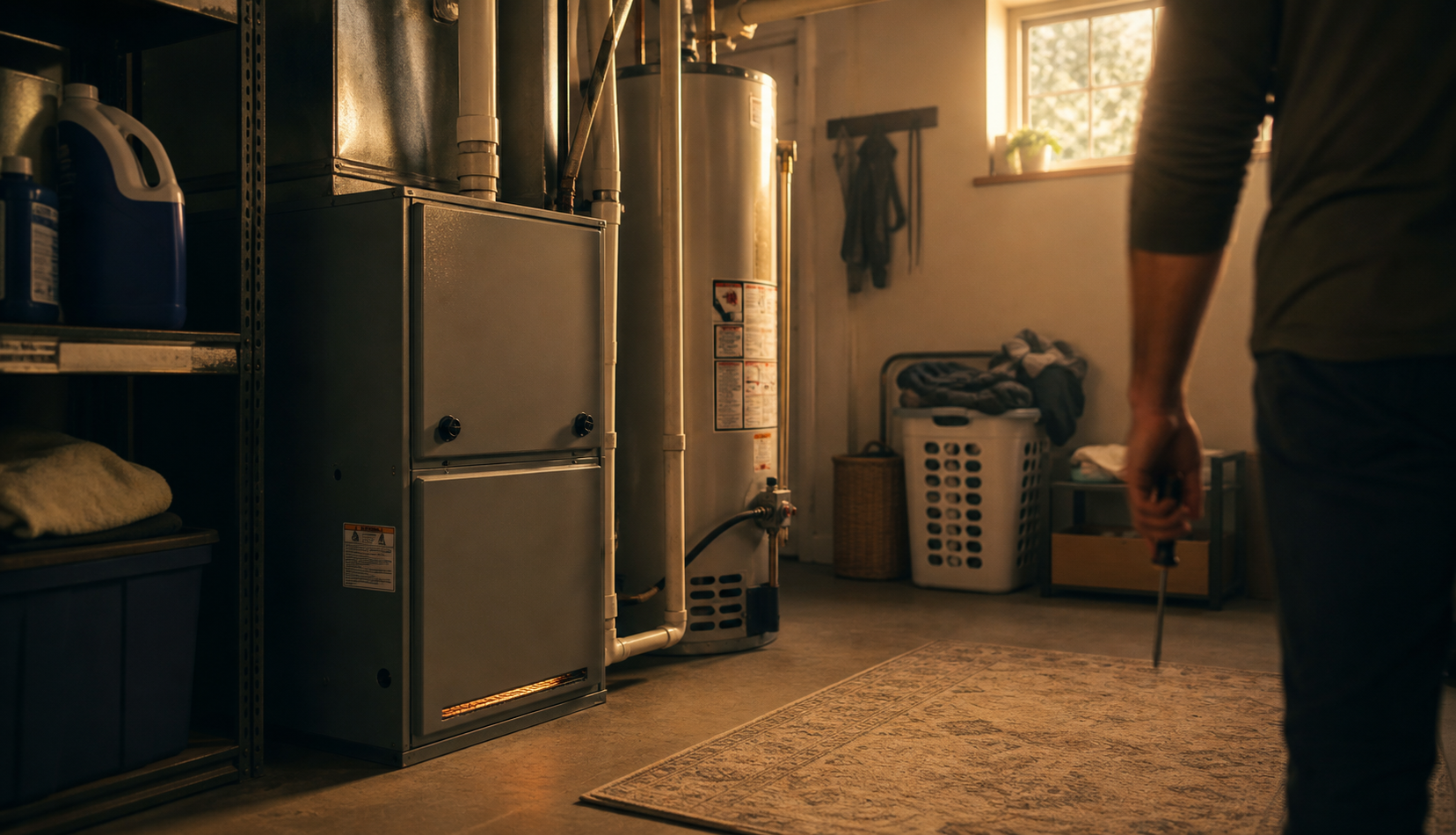

Restore gas and power, then set the thermostat to call for heat. Watch the ignition sequence: the ignitor should glow or spark, the burners should light, and — this is the part you’re testing for — the flame should stay lit and the furnace should keep running rather than cutting out after a few seconds.
What surprised me the first time I did this was how immediate the difference is. There’s no gradual improvement with a flame sensor fix. It either holds the flame now or it doesn’t, and you’ll know within the first full burn cycle, generally under a minute.
If the furnace still short cycles after a clean sensor and solid connection, the problem likely sits somewhere else — a weak ground connection, a failing control board, or gas pressure issues. At that point it’s reasonable to bring in an HVAC technician rather than keep swapping parts based on guesswork.
What Most People Don’t Know
Manufacturers generally recommend cleaning the flame sensor annually as part of routine furnace maintenance, not just when symptoms show up. It’s a preventive step almost nobody does, mostly because nobody sees it — it’s a small part hidden behind an access panel, not something that shows visible dirt the way a filter does. I now clean mine every fall before the heating season starts, whether it’s acting up or not, and I haven’t dealt with a short-cycling shutdown since. It takes less time than changing the furnace filter, and unlike a filter, it’s easy to forget it exists at all.
The other thing worth knowing: a flame sensor issue and a genuinely failing ignitor can look almost identical from the thermostat’s perspective — both show up as “furnace won’t stay on.” The distinguishing detail is whether you ever see or hear ignition happen at all. No flame at any point points toward the ignitor or gas valve. Flame that lights and then dies points toward the sensor almost every time.
Not every furnace problem needs a technician, and this is one of the clearest examples. A ten dollar part, a scrap of sandpaper, and ten minutes behind an access panel solves more short-cycling furnaces than most people expect.
