A gas range looks simple from the outside, but underneath the grates and knobs, it’s a collection of very specific parts, each with its own job and its own failure pattern. Most people never think about this until something stops working, and then they’re staring at a parts diagram wondering whether they need an igniter, a spark module, or a valve, without knowing the difference between the three. That confusion is expensive. Ordering the wrong part costs time, shipping, and a return process that nobody wants to deal with twice.
This guide walks through the major components of a gas stove and range, section by section, so you know what you’re looking at and what it’s actually called. Whether you’re troubleshooting a specific problem, replacing a worn part, or just trying to understand your appliance better before you call a technician, knowing the correct terminology changes the entire experience. It’s the difference between describing a problem vaguely and being able to ask for exactly what you need.
Burner Components: Caps, Grates, and Heads
The burner is the part people interact with the most, and it’s actually made up of several separate pieces that are often sold individually. The burner cap sits on top and directs the flame pattern; it’s usually the first thing to discolor or warp from heat exposure over the years. Below that is the burner head, which houses the ports where gas actually mixes with air before ignition. The grate is the metal grid that holds your cookware above the flame, and it’s purely structural, not connected to the gas or ignition system at all.
I’ve replaced burner caps more often than almost any other part on a gas range, mostly because they’re the most exposed to spills, boil-overs, and general wear. From experience, the smarter move is to check the burner cap and head for clogged ports before assuming you need an entirely new igniter. A lot of uneven flame or weak-flame complaints trace back to gunked-up ports rather than an electrical failure.
Grates vary in material more than people expect. Cast iron grates are heavier, hold heat longer, and tend to last decades if you don’t drop them. Some newer ranges use a lighter alloy that resists rust but can crack if handled roughly. When you’re shopping for a replacement grate, model number matters more than it seems like it should, because grate dimensions aren’t universal even across the same brand’s product lines.
Igniters and Spark Modules

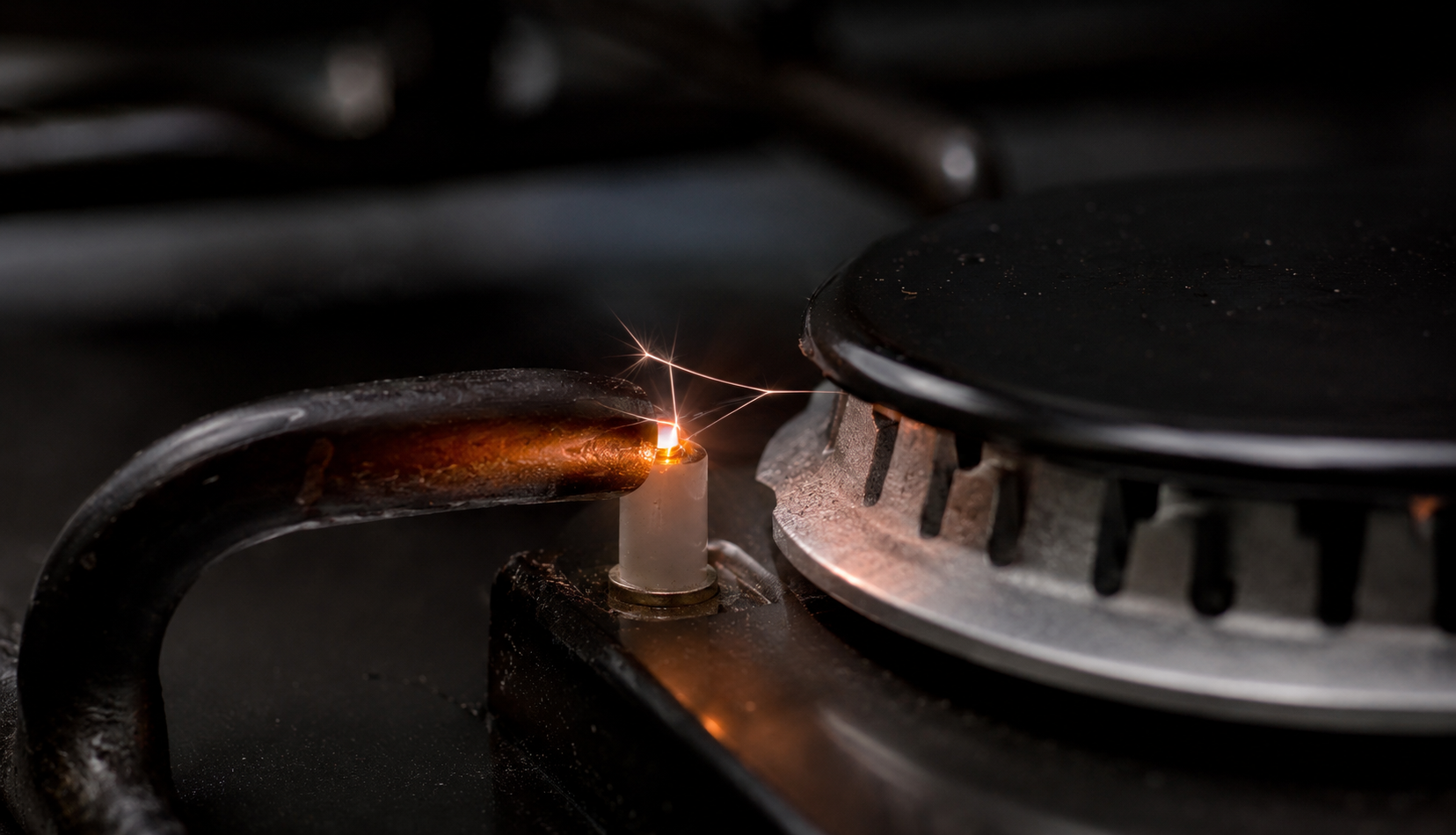

This is where most confusion happens, because “igniter” gets used loosely to describe a few different components. The actual igniter is the small ceramic or metal tip near each burner that produces the spark. It’s a fragile part, and a hairline crack in the ceramic is enough to stop it from sparking reliably, even though it might still glow or click.
Behind the scenes, the spark module is the electronic control that sends power to the igniters when you turn a knob. On many ranges, all the burner igniters are wired to one spark module, which is why a single failing module can sometimes cause multiple burners to click erratically at once. Most people miss this entirely and assume each burner has its own independent electronics, when in a lot of cases they don’t.
The oven igniter is a separate part altogether, usually a glow-bar style igniter that heats up, glows, and then opens the gas safety valve to allow gas flow into the oven cavity. It’s a higher-draw, more failure-prone part than most burner igniters because it does more electrical and mechanical work each time the oven cycles. If your oven ignites slowly or fails intermittently, this is usually the first part worth investigating.
Gas Valves and the Manifold System
The gas valve is what controls the actual flow of gas to each burner, and it’s mechanically linked to the knob you turn. Behind the knob assembly, all the individual burner valves connect to a central manifold, which is essentially the distribution pipe that carries gas from the main supply line to each burner’s valve. If you’ve ever noticed that turning one knob feels stiffer than the others, it’s often a valve-specific issue rather than something wrong with the manifold itself.
The oven has its own separate safety valve, distinct from the burner valves. This one is specifically designed to stay closed until the igniter reaches sufficient heat, which is a safety mechanism to prevent raw gas from flowing into the oven cavity without ignition ready to happen. I’ve tested this myself by watching an oven igniter cycle, and the pause before flame appears is the safety valve waiting for that heat threshold, not a delay or malfunction.
The regulator is another piece worth knowing about, especially if you’re converting between natural gas and propane or troubleshooting flame height issues. It controls gas pressure before it ever reaches the manifold, and a regulator that’s set incorrectly can cause every burner on the range to run either too high or too weak, even if each individual burner and valve is functioning correctly.
Control Knobs and Related Hardware
Control knobs seem like the simplest part on the entire range, but they fail more often than people expect, mostly through the plastic or metal shaft interface wearing down from repeated turning. A knob that spins freely without resistance, or one that doesn’t click into detent positions properly, usually means the knob itself has worn out rather than the valve behind it.
What surprised me was how often people replace an entire valve assembly when the actual problem was just the knob’s connection point stripping out. Knobs are sold both as universal replacements and as model-specific parts, and universal ones don’t always match the valve stem shape exactly, which can cause a loose or wobbly fit even when the knob technically works.
Oven-Specific Parts: Hinges, Seals, and Sensors
The oven door hinge takes a lot of mechanical stress over the life of a range, since it supports the door’s weight through thousands of open-and-close cycles. A worn hinge often shows up as a door that won’t stay fully open or one that slams shut on its own, and it’s a purely mechanical fix, unrelated to gas or electrical components.
The door seal, sometimes called a gasket, keeps heat inside the oven cavity during cooking. A cracked or flattened seal doesn’t just waste energy, it also throws off cooking times and temperatures because the oven has to work harder to maintain its set point. I’ve seen this go wrong when people troubleshoot uneven baking for months without ever checking whether the seal has degraded around the door’s edges.
The temperature sensor is a thin metal probe usually located toward the back or top of the oven cavity, and it’s what tells the control board how hot the interior actually is. If this part reads inaccurately, the oven can run consistently too hot or too cold even though the dial setting looks correct. This is different from the thermostat found on older mechanical ranges, which combines sensing and control into a single unit rather than reporting back to an electronic board.
Cooktop Glass and Convection Components
Not every gas range has a full glass cooktop, but many newer models integrate glass panels around the burners for a cleaner look and easier cleaning. These panels are typically tempered glass, and while they’re built to handle heat, a dropped pot lid or a sharp impact can crack them. Replacement panels are almost always model-specific because mounting points and burner cutouts vary between manufacturers.
Convection ranges add a fan motor and sometimes a secondary heating element specifically for circulating hot air. The convection fan motor is a common wear part in ranges that see heavy oven use, since it runs continuously during convection cooking cycles. A humming sound with no airflow, or a fan that won’t spin at all, usually points directly to this component rather than anything related to the main oven igniter or safety valve.
What Most People Don’t Know
Most people assume any part labeled for their brand will fit their exact range. That’s usually wrong. Manufacturers frequently use multiple manifold and valve configurations across a single model year, which means two ranges with the same brand name and a similar-looking model number can require completely different parts. The only reliable way to guarantee a match is pulling the full model and serial number directly off the appliance, usually found on a sticker inside the oven door frame or along the bottom edge of the storage drawer, and cross-referencing that exact string rather than relying on the general model name printed on the front panel.
There’s also a quieter distinction between OEM and aftermarket parts that matters more than most buying guides mention. OEM parts are made by or for the original manufacturer and are engineered to the exact tolerances of your specific range. Aftermarket parts are often cheaper and can work fine, but tolerances vary between third-party manufacturers, and fit issues are more common, especially with parts that involve moving mechanical connections like knobs and hinges rather than simple electrical components.

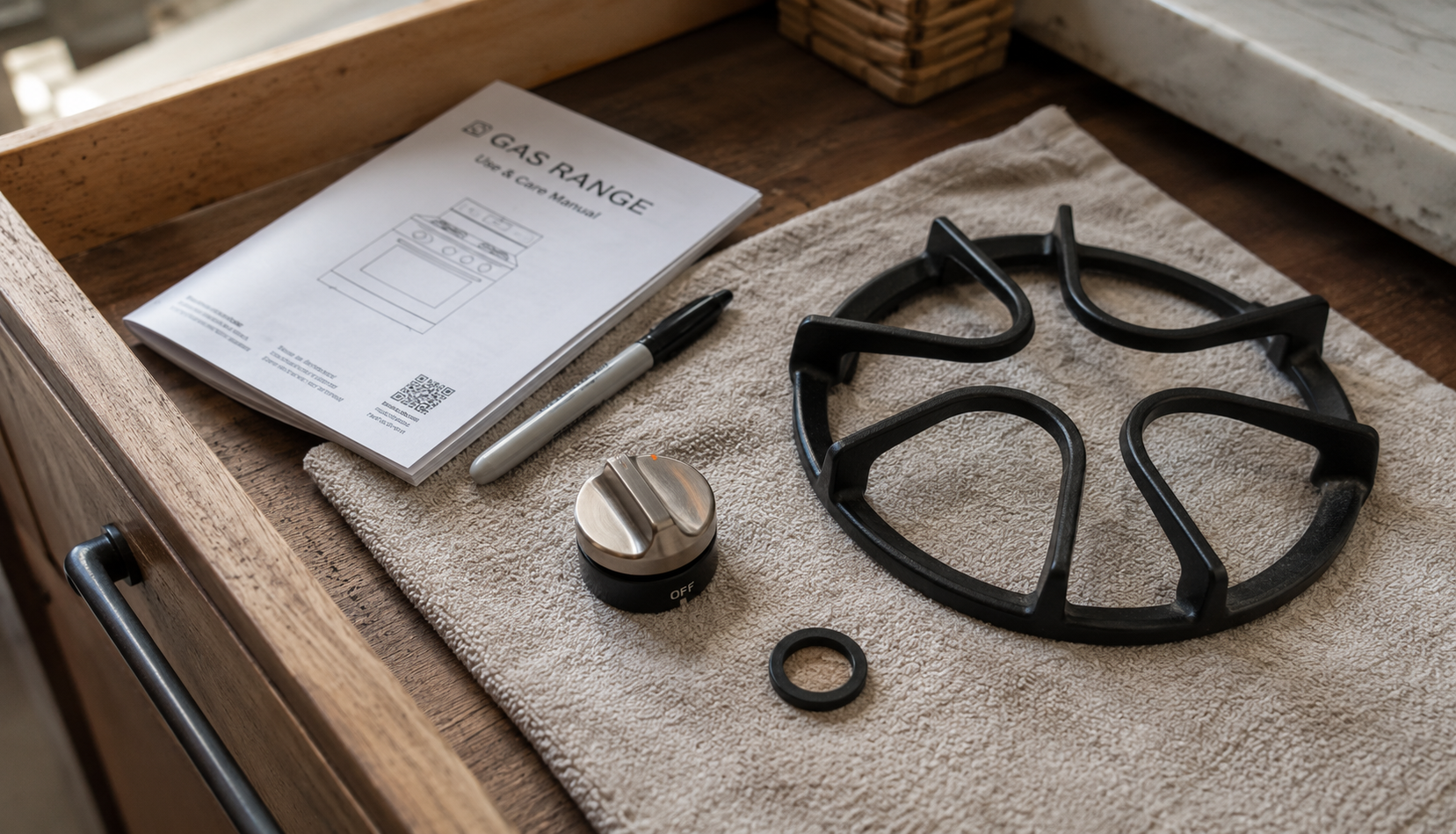

Finding the Right Part for Your Range
Once you know which component is failing, the model and serial number becomes the single most useful piece of information you can have. It’s worth photographing that sticker the first time you notice it, long before anything breaks, so you’re not crouched behind a hot oven trying to read faded text during an actual repair situation.
From there, matching a part number to a specific component is usually straightforward once you know the correct terminology. Searching “burner cap” instead of “the round metal thing on top” or “spark module” instead of “the sparky part” gets you to the right listing far faster, and it also helps you understand what a technician is talking about if you ever do call one in. Understanding your range’s parts doesn’t just help you fix things. It changes how you talk about your own appliance, and that’s a small shift that pays off every time something eventually needs attention.
