Installing a gas water heater isn’t a casual weekend project. I learned that the hard way after helping a friend replace an aging unit that had started leaking rusty water across the garage floor at 2 a.m. One loose gas connection turned a simple install into a stressful emergency call. Since then, I’ve installed and troubleshot dozens of gas water heaters in homes old and new, and I’ve seen exactly where people go wrong.
A properly installed gas water heater gives reliable hot water for years. A badly installed one can leak gas, fail inspections, waste energy, or damage the home. The difference usually comes down to preparation and attention to detail, not expensive tools.
Most online guides rush through critical safety steps or make everything sound easier than it really is. Real installations rarely go perfectly. Pipes don’t line up. Old shut-off valves fail. Venting gets overlooked. This guide walks through the process the way it actually happens in real homes, with practical advice from hands-on experience so you can avoid costly mistakes and install your gas water heater the right way.
Preparing the Area Before Installation
Old water heaters usually fail long before homeowners expect them to. I’ve seen units look fine from the outside while the bottom was completely corroded underneath. Before removing anything, clear enough working space around the heater to move comfortably. Tight spaces lead to rushed mistakes, especially when handling gas lines and vent pipes.
Turn off the gas supply first. Then shut off the water supply feeding the heater. Most people skip checking whether the shut-off valves actually work until water starts spraying unexpectedly. I always test them early because older valves commonly seize or leak after years of sitting untouched.
Drain the old tank completely before disconnecting it. Sediment buildup can make a heater far heavier than expected. One older heater I removed felt almost cement-filled because mineral deposits had hardened inside the tank over time. Connect a hose to the drain valve and direct the water safely outside or into a floor drain.
The installation area also needs proper ventilation and clearance. Gas water heaters require airflow for combustion. I’ve seen heaters squeezed into closets packed with paint cans and storage boxes, which creates serious fire risks. Clear the area fully before bringing in the new unit.
Choosing the Right Gas Water Heater
Bigger doesn’t always mean better. One of the most common mistakes I see is homeowners buying oversized tanks thinking they’ll never run out of hot water again. The result is usually higher gas bills and wasted energy.
Tank size should match household usage. A smaller home with one bathroom may only need a 40-gallon unit, while larger families often benefit from 50-gallon or higher models. Recovery rate matters too. Some heaters reheat water much faster than others, which can matter more than total tank size.
Fuel type compatibility is another detail people miss. Natural gas and propane heaters aren’t interchangeable without proper conversion. I once saw someone install the wrong type entirely because the heater “looked identical” at the store. The burner performance was completely off, and the unit wouldn’t operate safely.
Pay close attention to venting requirements before buying. Atmospheric vent models, power vent units, and direct vent heaters all install differently. The mistake I made early on was assuming the replacement unit would vent exactly like the old one. That single assumption added hours of extra work and unexpected parts runs.

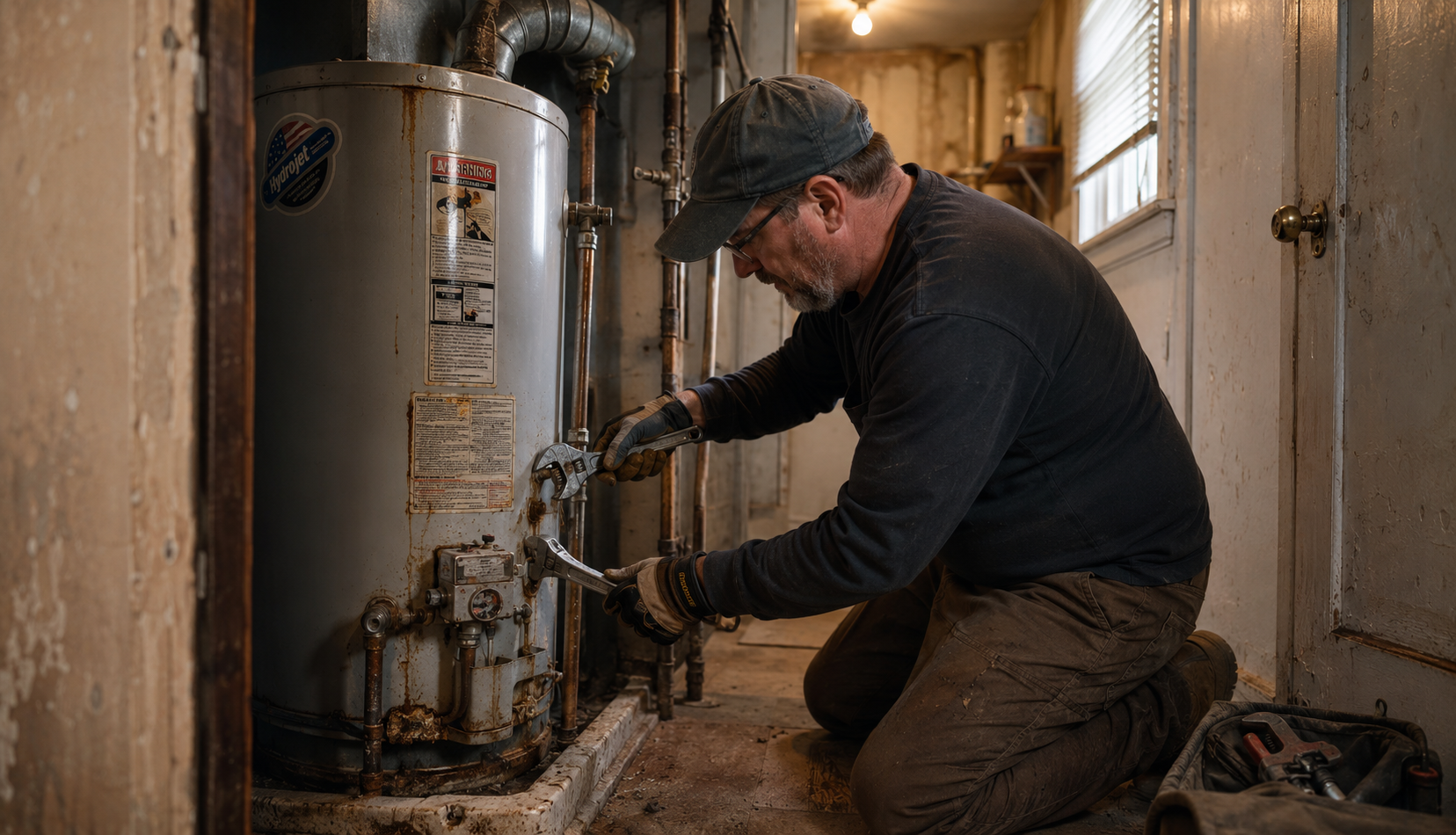

Removing the Old Gas Water Heater
Disconnecting the old heater takes patience. Corroded fittings rarely cooperate. I keep penetrating oil nearby because older pipe connections often lock together after years of heat and moisture exposure.
Start by disconnecting the gas line carefully using two wrenches to avoid twisting the pipe. I’ve seen homeowners crack fittings inside walls because they forced connections too aggressively. Once disconnected, cap the gas line temporarily for safety.
Next comes the vent pipe. Many older vent connections become brittle or rusted thin over time. Remove sections carefully instead of yanking them apart. Even small damage can create venting problems later that allow carbon monoxide into the home.
Water connections can be frustrating too. Hard water areas create heavy mineral buildup inside threaded fittings. Flexible supply lines make replacement easier, but older rigid copper setups may require cutting and soldering. If pipes are already heavily corroded, replacing worn sections now prevents future leaks.
Moving the old heater out can be surprisingly difficult. Full-size tanks are bulky and awkward even after draining. I’ve carried units that still held gallons of hidden sludge long after they seemed empty. A dolly saves your back and prevents damage to flooring.

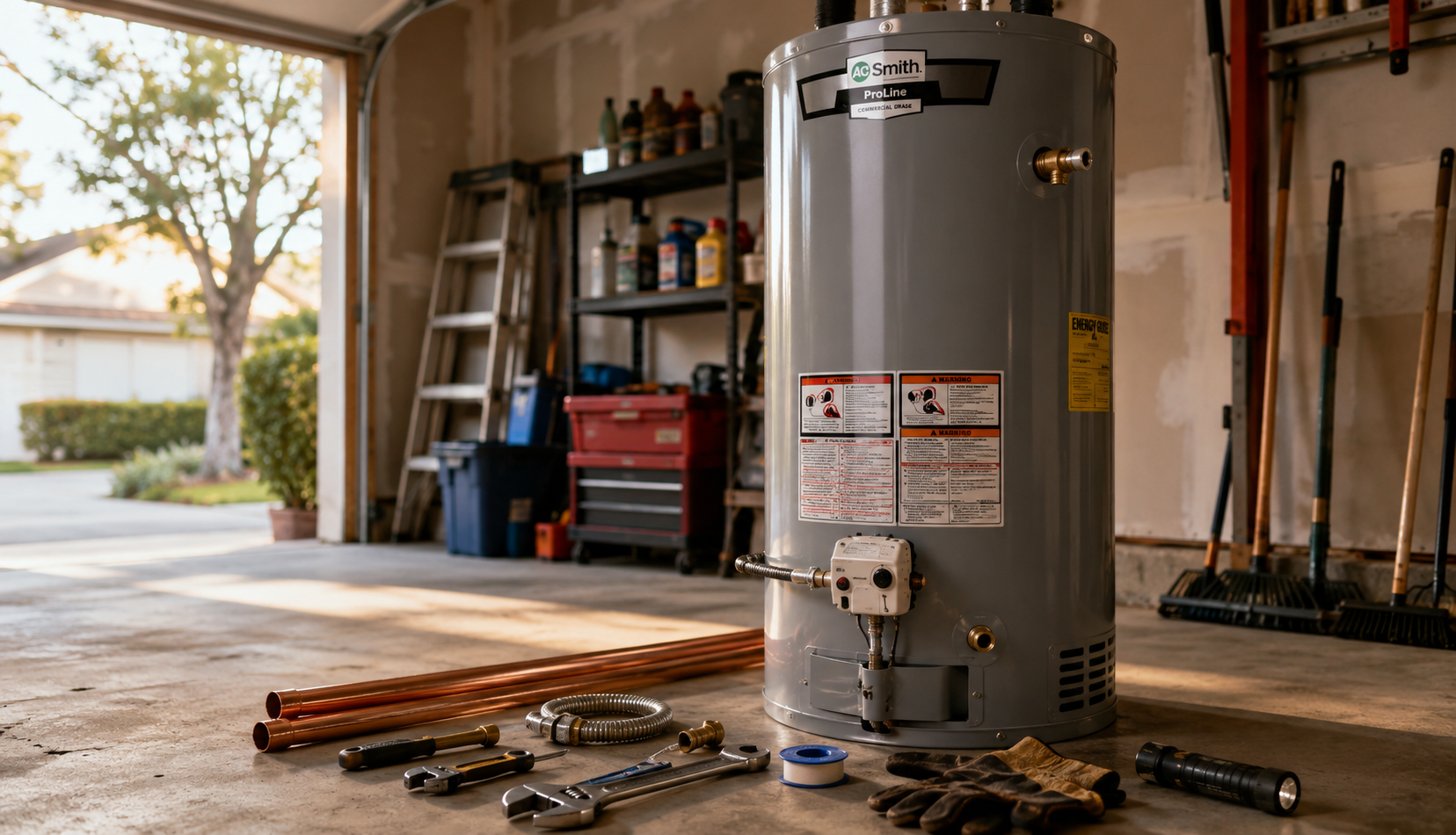

Installing the New Gas Water Heater
Position the new heater first before making any connections. Sounds obvious, but I’ve seen people fully connect water lines only to realize the heater needed to shift several inches for vent alignment. Leave enough clearance around the unit for maintenance and airflow.
Connect the water lines securely using approved fittings. Most modern installations use flexible connectors because they simplify alignment and reduce stress on pipes. I always inspect fittings twice before turning water back on because tiny leaks often hide at first.
Gas connections demand extra care. Apply gas-rated thread sealant correctly and tighten fittings firmly without over-torquing. One of the biggest installation mistakes is assuming “tight enough” by feel alone. After reconnecting the gas line, test every joint using a leak detection solution or soapy water. Bubbling means a leak exists. Never ignore even small bubbles.
The venting system must slope properly and connect securely without gaps. Poor venting creates dangerous exhaust problems that many homeowners never notice until symptoms appear. I’ve inspected installs where vent pipes were barely attached and spilling combustion gases directly into utility rooms.
Filling and Testing the Water Heater
Turning everything on too quickly causes problems. I always fill the tank completely before igniting the burner. Firing a gas heater with an empty tank can destroy components almost immediately.
Open the cold-water supply valve and allow the tank to fill while keeping a nearby hot-water faucet open. This pushes trapped air out of the system. Most people panic when sputtering air blasts from the faucet, but that’s completely normal during filling.
Check every connection carefully while the tank fills. Tiny drips around fittings may not appear immediately. I usually wait several minutes and run my hand around each joint again before moving forward. A small leak now becomes water damage later.

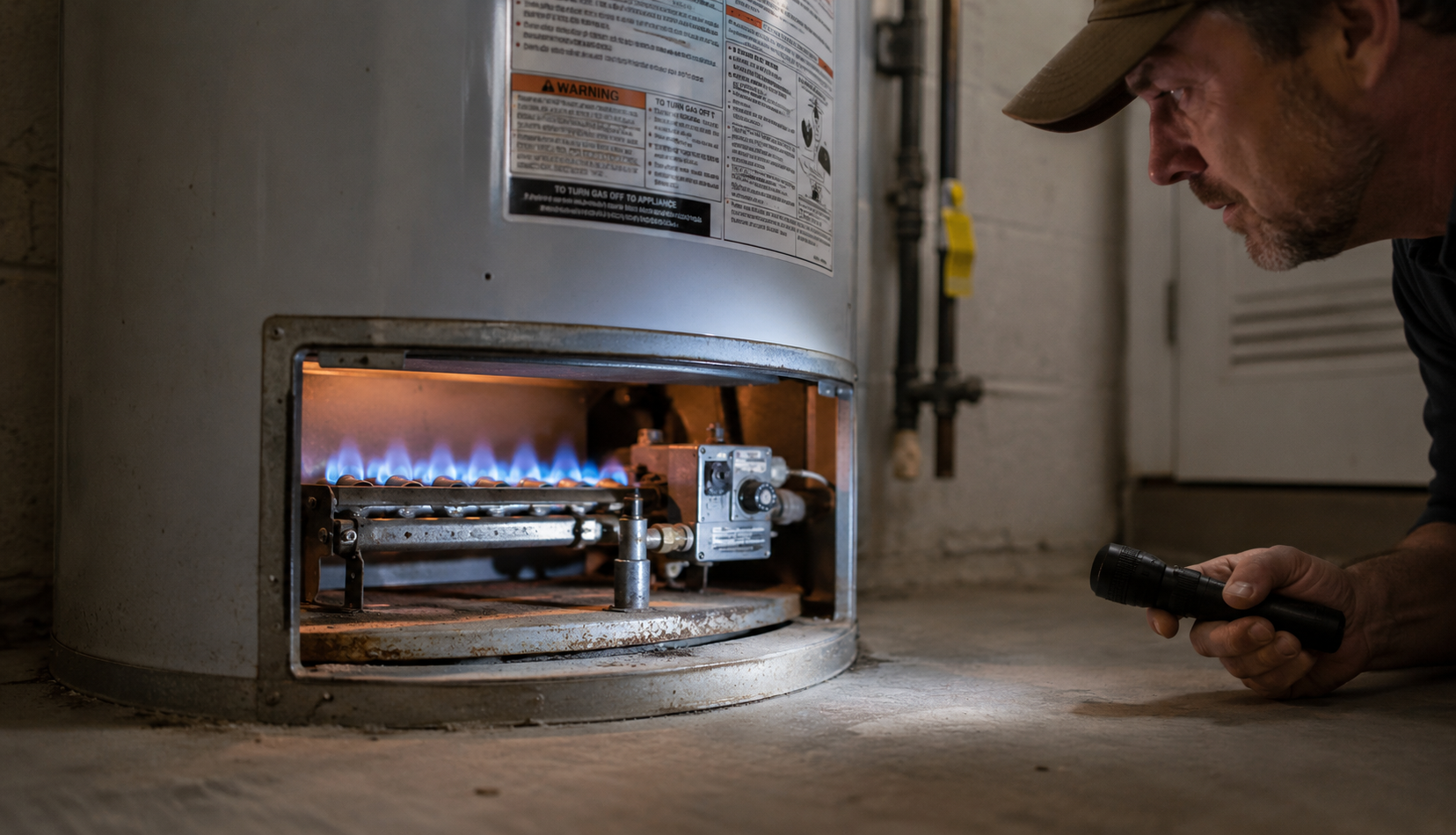

Once the tank is full, follow the manufacturer’s lighting instructions exactly. Modern gas heaters often use electronic ignition systems instead of standing pilot lights. Watch the burner operation closely during the first heating cycle. The flame should burn clean and steady, not flicker wildly or appear yellow.
Common Installation Mistakes Homeowners Make
Skipping permits causes more trouble than people expect. Many areas require inspections for gas appliance installations, and failed inspections can create insurance or resale issues later. I’ve seen homeowners forced to redo perfectly functional installs because local code requirements weren’t followed.
Improper venting remains one of the most dangerous mistakes. Exhaust gases must exit safely outside the home. Even slightly loose vent sections can create carbon monoxide risks that aren’t immediately obvious. This isn’t an area to guess or improvise.
Another common issue is reusing old parts to save money. Old shut-off valves, worn connectors, and rusted vent sections often fail shortly after installation. Replacing questionable components during the install saves major headaches later.
Temperature settings also matter more than most people realize. Some homeowners crank the thermostat excessively high thinking it improves performance. It usually just increases scalding risk and energy usage. Around 120 degrees Fahrenheit works well for most households while staying safer and more efficient.
When to Call a Professional Instead
Some installations move beyond DIY territory fast. Older homes especially can hide surprises behind walls and floors. I’ve opened utility closets expecting a routine replacement only to discover unsafe venting, outdated gas piping, or water damage underneath the old heater.
Gas leaks should never become a trial-and-error project. If you smell gas at any point during installation, stop immediately and shut off the supply. No hot shower is worth risking an explosion or fire.
Complex venting systems also deserve professional attention. Power vent and direct vent systems require exact installation standards that homeowners often underestimate. One improperly angled vent can cause repeated shutdowns or dangerous exhaust problems.
Electrical components on newer gas heaters can complicate things too. Hybrid systems and electronic ignition models sometimes require dedicated outlets or updated wiring. I’ve seen perfectly installed plumbing jobs fail simply because the electrical setup was overlooked.
Final Thoughts
Installing a gas water heater safely comes down to precision, patience, and respecting the risks involved. Most installation problems don’t happen because people lack tools. They happen because small safety details get ignored during a rushed job. I’ve seen tiny vent gaps, loose gas fittings, and reused parts create major problems months later.
Take your time with every connection and test everything twice before calling the job finished. If something feels uncertain, especially involving gas or venting, bringing in a licensed professional is the smarter move.
The best next step is to check your local building codes and your new heater’s installation manual before touching a single pipe or fitting.
