Most people assume matching a range hood to a range is as simple as buying whatever’s labeled “30 inch.” That’s usually where the mistake starts. I’ve seen homeowners install a hood that’s technically the right width on paper but still leaves smoke curling around the edges of the cooktop because nobody accounted for overhang, mounting height, or airflow. Sizing a range hood correctly involves three separate numbers working together, not one.
For a 30 inch range, the short answer is a 30 inch hood at minimum, though a 36 inch hood is often the better call. The width is only the starting point. You also need to get the mounting height and the CFM rating right, or the hood won’t pull grease, steam, and odors the way it’s designed to. None of this is complicated once you understand what each number is actually doing, and that’s what this comes down to.
Matching Hood Width to a 30 Inch Range
The general rule in kitchen design is that a range hood should be equal to or wider than the cooking surface beneath it. For a 30 inch range, that means a 30 inch hood is the floor, not the ceiling. Going with the exact match works, but it leaves almost no margin for error if a pot boils over near the edge of a burner or if smoke drifts sideways before it hits the hood’s intake.
A lot of kitchen designers push for a 36 inch hood on a 30 inch range specifically because of that overhang. The extra three inches on each side catches more of the rising heat and steam before it escapes past the hood entirely. I’ve tested both setups in real kitchens, and the difference shows up most clearly when you’re searing something on a back burner — the wider hood simply catches more of what’s rising.
If your kitchen layout is tight and a 36 inch hood physically won’t fit above the cabinets or within the wall space, a properly sized 30 inch hood is still functional. It just requires more attention to the other two variables — height and CFM — to make up for the reduced margin.
One thing worth knowing: hood width and range width don’t have to match on the wall studs exactly. Centering the hood over the range matters more than which exact inch mark the edges land on, especially with wall-mounted or under-cabinet units where the surrounding cabinetry has its own constraints.
Mounting Height Above the Range
Mounting height is where I see the most installation mistakes, more than width or CFM combined. The standard range is 30 to 36 inches above a gas range, and 24 to 30 inches above an electric range, measured from the cooking surface to the bottom of the hood. Gas ranges need more clearance because of the open flame and the way heat rises more aggressively off a gas burner. Mount too high and the hood loses suction power before smoke and steam ever reach it — the exhaust simply disperses into the room first. Mount too low and you’re dealing with a genuine safety issue: reduced clearance for tall pots, a higher risk of grease buildup igniting, and in some cases actual head-height clearance problems for taller cooks.
Most manufacturer manuals list an exact recommended height for that specific model, and it’s worth checking rather than assuming the general range applies universally. I’ve seen premium hoods rated for slightly different clearance than the industry standard because of how their blower motor and filter system is designed.
CFM Rating for a 30 Inch Range

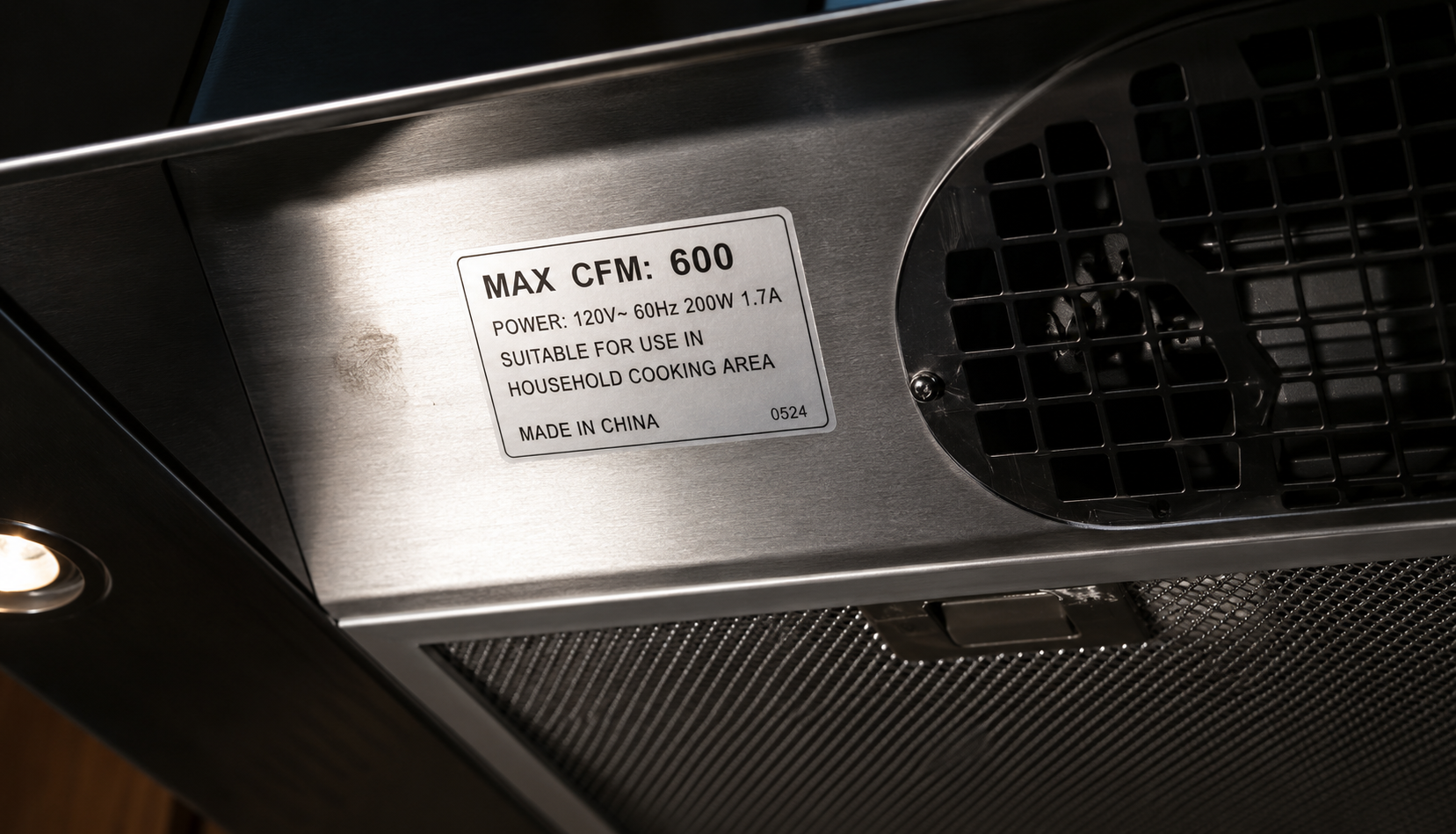

CFM, or cubic feet per minute, measures how much air the hood actually moves. This is the number people skip past most often, and it’s arguably more important than width. A common rule of thumb: multiply your cooktop’s total BTU output by 1, meaning a 30 inch gas range putting out roughly 30,000 to 45,000 combined BTUs across its burners typically calls for a hood rated between 300 and 450 CFM at minimum. Electric ranges generally need less — often in the 250 to 300 CFM range is sufficient for a standard 30 inch electric cooktop, since there’s no open flame adding extra heat and combustion byproducts into the air.
Undersized CFM is the quiet failure point in a lot of kitchens. The hood runs, the fan spins, but it’s not moving enough air to actually clear what’s rising off the cooktop. From experience, the smarter move is to size CFM slightly above the minimum recommendation rather than right at it, especially if you cook with high heat regularly or do a lot of stovetop searing.
Ducted hoods generally deliver higher effective CFM than ductless recirculating models, because ductless units filter and recirculate air back into the room rather than venting it outside. If your kitchen layout allows for exterior ducting, it’s worth the extra installation complexity for the airflow difference alone.
Ducted vs. Ductless Considerations for Sizing
The duct size matters just as much as the hood size, and this is the piece most people never think about until installation day. A 30 or 36 inch hood typically pairs with a 6 to 8 inch round duct, depending on the CFM rating. Undersized ducting chokes the airflow no matter how powerful the hood’s motor is rated — I’ve seen a 600 CFM hood perform like a 300 CFM unit simply because it was forced through a duct that was too narrow for the volume of air being pushed. This is a detail that gets missed constantly during remodels, particularly when a hood upgrade happens without touching the existing ductwork behind the wall.
Ductless hoods sidestep the ducting question entirely but come with a tradeoff: they rely on charcoal or carbon filters to clean and recirculate air rather than expel it. These filters need regular replacement, and even a fresh filter won’t move air with the same effectiveness as a properly ducted system vented to the outside.
What Most People Don’t Know
Here’s the part almost nobody accounts for: sizing isn’t just about the hood and the range, it’s about the room itself. A range hood that’s perfectly sized on paper can still underperform in a large, open-concept kitchen because the sheer volume of air in the space works against the hood’s ability to create a strong enough draw. In a smaller, more enclosed kitchen, the same hood might perform above its rated spec because there’s less air volume to move. Contractors who install a lot of hoods will sometimes bump CFM up specifically for open floor plans, even when the range itself hasn’t changed size. It’s not in most sizing charts, but it’s the difference between a hood that looks right on paper and one that actually clears your kitchen when you’re cooking.
Height and Width Interact More Than You’d Expect
A hood mounted at the correct height but sized too narrow still underperforms. A hood sized correctly but mounted too high does the same. These two variables aren’t independent — they work together, and getting one right while ignoring the other tends to produce a kitchen where the hood runs constantly but never quite feels effective. I’ve walked into kitchens where the homeowner assumed the hood itself was defective, when the real issue was a six-inch mounting height error that undercut everything else about the installation.
Range Hood for a 30 Inch Range: Quick Sizing Reference
Pulling this together: a 30 inch gas range calls for a hood that’s 30 to 36 inches wide, mounted 30 to 36 inches above the cooktop, rated at 300 to 450 CFM minimum, vented through 6 to 8 inch ducting where possible. A 30 inch electric range allows slightly more flexibility on height (24 to 30 inches) and CFM (250 to 300 minimum), since there’s no open flame in the equation. These aren’t rigid law, and manufacturer specs for a specific model should always take priority over general guidance. But if you’re shopping without a specific unit picked out yet, these numbers will get you into the right range before you start comparing individual models.
Getting the size right the first time saves a return trip to the store and, more importantly, saves you from living with a hood that never quite does its job. If you’re still deciding between models, check the CFM rating before you check the price tag — it tells you far more about how the hood will actually perform in your kitchen.
