Most people assume a flashing error code on their Duet washer means something expensive is about to happen. That’s usually not the case. The Duet line uses a fairly transparent system of F-codes and letter combinations that point to a specific subsystem, and the vast majority of them trace back to something you can check and often fix within a few minutes. I’ve worked through enough of these codes across different Duet models to know the pattern well, and the codes genuinely exist to help you, not to intimidate you into calling a technician for something minor. This guide walks through the codes you’re most likely to run into, what triggers each one, and what to actually do about it.
How the Duet’s Error Code System Works
The Duet line, like most of Whirlpool’s front-load washers from the same era and generation, relies on a control board that monitors conditions throughout the wash cycle in real time. Water level, door lock status, drain flow, motor speed — all of it gets tracked continuously, and when something falls outside expected range, the control board assigns a specific code tied to whichever system triggered the fault.
I’ve tested this myself across a handful of Duet models, and the underlying logic holds consistently. These codes aren’t random malfunction alerts. They’re the washer narrowing down a broad range of possible issues into one specific area worth checking first, which saves a lot of guesswork compared to troubleshooting blind.

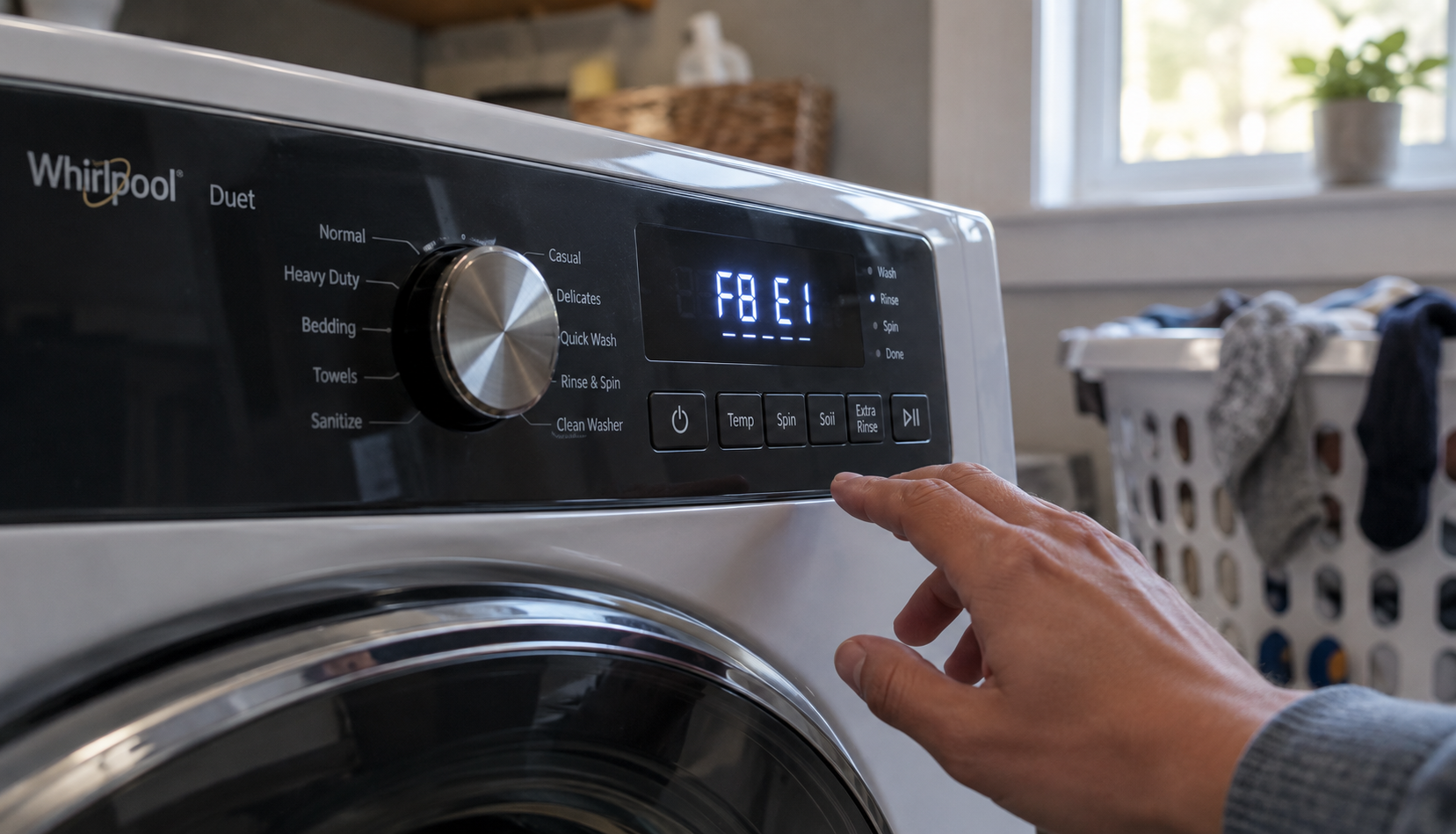

Most Duet models display codes directly on the digital readout, typically as a letter followed by a number, like F02 or F21. Some combination codes pair two letters together, like SUD or LF, which represent a different category of issue tied more to suds or water temperature than a hard mechanical fault.
Knowing your specific Duet model matters here more than people expect, since Whirlpool revised the control board logic across different generations of the line, and a code that means one thing on an earlier model can occasionally map to something slightly different on a newer one.
F02: The Most Common Duet Drain Error
F02 shows up more frequently than almost any other Duet code, and it points to a drainage problem — specifically, the washer has detected that water isn’t draining within the time it expects during the drain phase of the cycle. This is one of the more mechanically straightforward codes to troubleshoot, because the cause sits somewhere along the physical drain path rather than anywhere electrical.

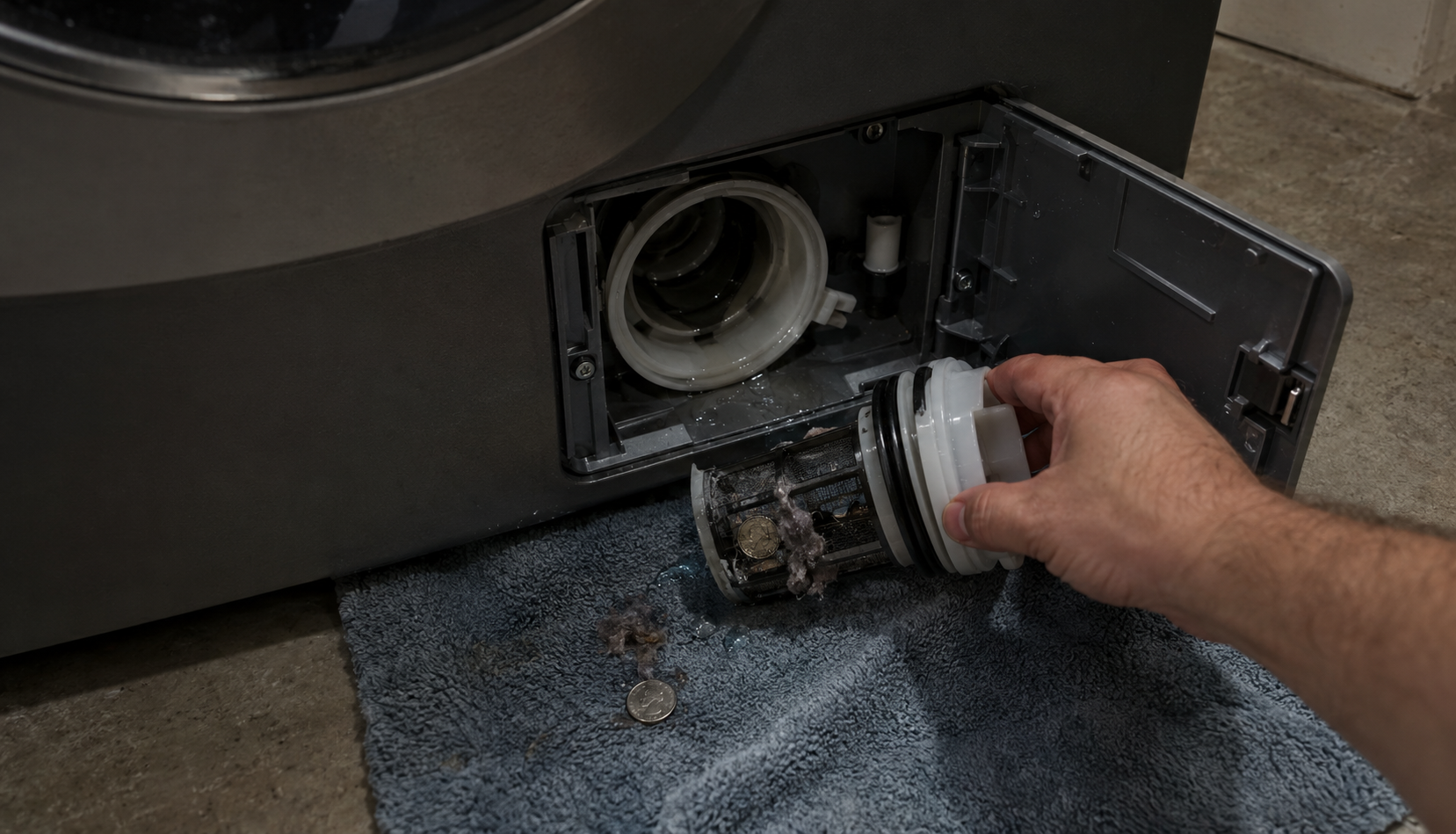

Most people miss this entirely, but the drain pump filter is the first and most common culprit. Most Duet models have an access panel near the bottom front of the machine that opens to a small pump filter, and this filter catches coins, buttons, and general debris before it reaches the pump itself. A filter packed with debris restricts flow enough to trigger F02 even when the pump motor is working fine.
If the filter checks out clean, the drain hose is the next place to look, particularly for kinks where the washer meets the wall connection. I’ve seen this go wrong when a washer’s been pushed back against the wall without enough clearance, pinching the hose at exactly the spot that’s hardest to see without pulling the machine forward a few inches.
F05 and F06: Heating and Temperature Sensor Codes
These codes generally point to the heating element or the thermistor responsible for monitoring water temperature during the wash cycle. F05 typically indicates a thermistor reading outside the expected range, while F06 can point to a broader issue with the motor control unit’s communication with the rest of the system.
What surprised me was how often these get misdiagnosed as a dead heating element when the actual issue is a loose wire connection or a tripped circuit breaker feeding inconsistent power to the unit. Before assuming a part needs replacing, checking the breaker and confirming the washer is getting steady, full power is worth doing first.
If power delivery checks out fine, the thermistor or heating element can be tested with a multimeter, though accessing either one usually means removing a panel and working near wiring harnesses that are easy to damage without some familiarity with the washer’s internal layout. This is a reasonable point to bring in a service technician rather than risk further damage.
F07, F09, and F11: Motor and Communication Errors
This group of codes relates to the drive motor and its communication with the main control board. F07 often points to a motor speed sensor malfunction, F09 can indicate an issue with the unbalance switch detecting excessive vibration, and F11 generally signals a communication failure between the motor control unit and the main control board.
From experience, the smarter move with any code in this range is checking for a genuinely unbalanced or overloaded drum before assuming a sensor or wiring fault. A single heavy item, like a comforter bunched to one side, creates enough resistance and vibration during spin to trigger these codes even when every component is functioning correctly.
If redistributing the load and running a test cycle doesn’t resolve it, the wiring harness connecting the motor control unit to the main board is the next reasonable check, since these connections can loosen slightly over time from normal vibration. Beyond that, a failed motor control unit is possible but less common, and it’s a repair most people reasonably hand off to a technician given the complexity of accessing and testing it.
F13 and F21: Dispenser and Draining Combination Faults
F13 typically relates to the detergent dispenser system not completing its cycle properly, often because the dispenser motor isn’t receiving the signal it expects or the dispenser itself is jammed with built-up detergent residue. F21 is closely related to F02 but often indicates a more severe or persistent drainage blockage rather than a simple filter clog.
The first time I dealt with F13, the dispenser drawer itself was the culprit — compacted detergent and fabric softener residue had built up enough to physically block the dispenser’s normal motion. Removing the drawer entirely and giving it a thorough cleaning, including the cavity it sits in, resolved the code without needing any parts replaced.
For F21 specifically, if the standard drain filter and hose checks from the F02 section don’t resolve it, checking the drain pump itself for an obstruction lodged in the impeller is the next step. This requires more disassembly than the filter check, and it’s a reasonable point to decide between doing it yourself or calling in help, depending on comfort level with the machine’s internals.
SUD, LF, and LR: Suds and Water Flow Codes
These combination codes represent a different category from the F-series numeric codes, and they relate more to water chemistry and flow rate than hard mechanical faults. SUD indicates the washer has detected excessive suds, usually from using too much detergent or the wrong type of detergent not formulated for high-efficiency machines. LF and LR both relate to the washer taking too long to fill, with LF often pointing to a water supply issue and LR indicating the rinse cycle specifically is affected.
Most people miss this entirely, but switching to a high-efficiency detergent formulated for low-water front-load machines resolves SUD more often than any mechanical fix does. Regular detergent produces far more suds than these machines are designed to handle, and the excess suds genuinely interfere with the wash cycle’s sensors.
For LF and LR, checking the water supply valves behind the machine to confirm they’re fully open, along with inspecting the inlet hoses for kinks, resolves most cases. The inlet screen filters where the hoses connect to the back of the machine are also worth checking, since mineral buildup there restricts flow long before a valve itself shows signs of failure.
What Most People Don’t Know
Here’s something that catches a lot of people off guard: pressing and holding specific button combinations on many Duet models, typically Start combined with one or two other buttons depending on the exact model, triggers a built-in diagnostic test mode that cycles through major components without running a full wash cycle. This isn’t prominently documented in the quick-start guide, but it’s in the full service manual, and it’s genuinely useful for narrowing down whether a persistent code points to a specific failed part or something more easily fixed.
Running this diagnostic before calling for service can save a visit entirely in cases where the issue turns out to be a sensor giving one inconsistent reading rather than an actual hardware failure. It also gives you something specific to describe to a technician if one does become necessary, rather than just relaying whatever code happened to display.
What Comes Next
Most Duet error codes trace back to a handful of root causes — a clogged filter, an unbalanced load, a loose connection, or suds buildup from the wrong detergent — and the majority of them are things you can check and resolve without bringing in outside help. Start with the specific code, work through the cause tied to it, and save the technician call for cases where the straightforward checks come up empty. The washer’s telling you something specific every time one of these codes appears. The work is just in reading the message correctly.
