KitchenAid refrigerators sit under the same parent company as Whirlpool, and the ice maker hardware inside them shares more DNA than most owners realize. That’s actually good news if yours has stopped working, because it means the failure points are well understood and the fixes are usually straightforward once you know which part to check first.
None of this requires assuming the worst. Most KitchenAid ice maker problems come down to one of four or five specific causes, and working through them in order saves a lot of unnecessary part-swapping.
Start With the Sensor or Feeler Arm
Depending on your model, KitchenAid ice makers use either a physical feeler arm or an infrared sensor bar to detect when the bin is full and stop production automatically. Both are prone to getting stuck in a position that tells the unit to halt even when the bin’s nearly empty, and this alone accounts for a large share of “my ice maker just stopped” complaints.
On feeler arm models, lower the arm by hand and hold it for a few seconds. A working unit typically responds within a minute or two with a faint motor engagement sound, confirming the arm itself, not anything electrical, was the actual issue.

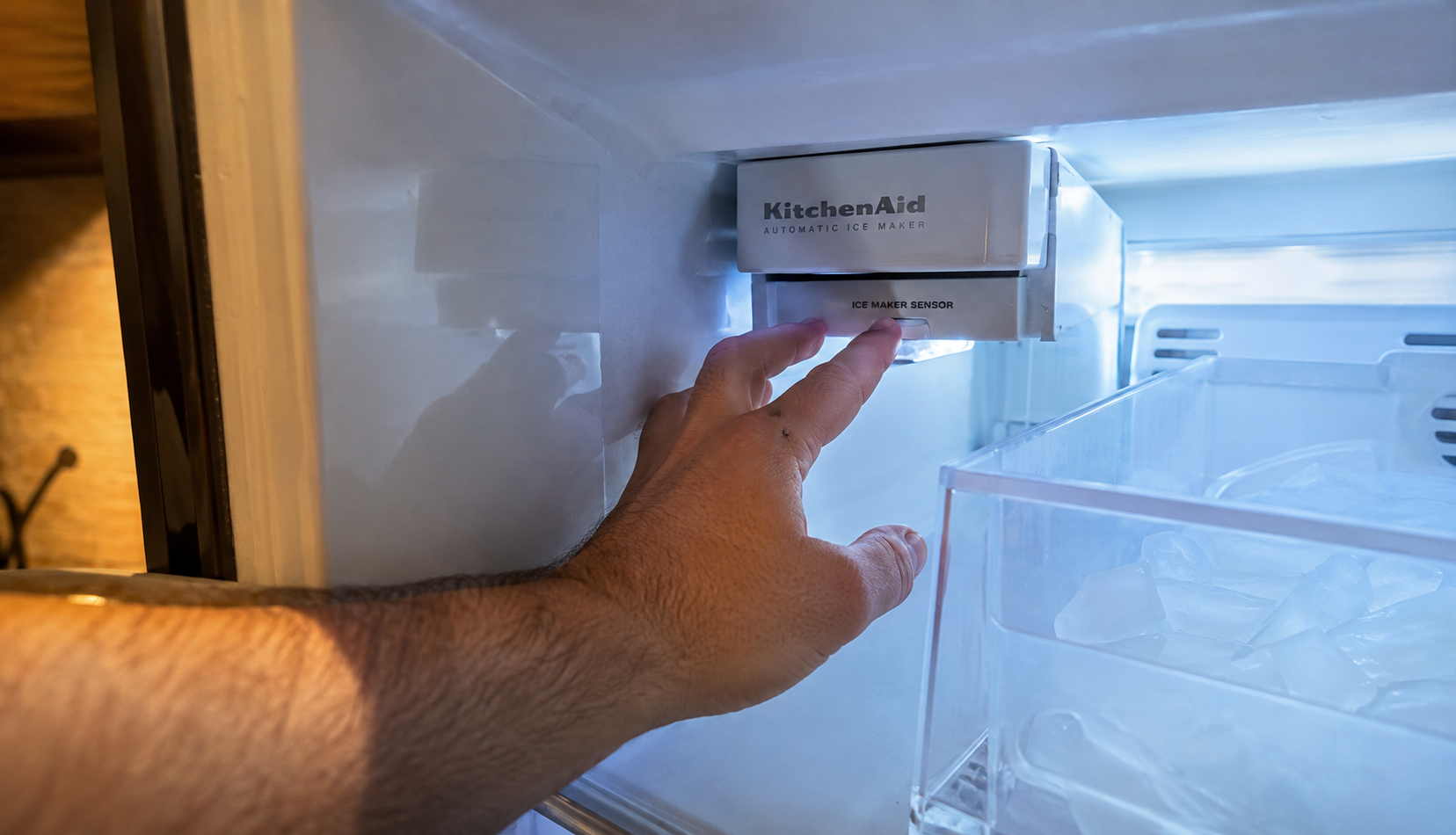

Sensor bar models take a bit more attention since there’s no physical arm to manipulate. What surprised me the first time I dealt with one of these is how often a thin layer of frost sitting directly on the sensor lens was the entire problem. A dry wipe of the sensor face, no cleaning solution needed, resolved it completely on more than one unit.
If wiping the sensor doesn’t bring production back, check whether ice cubes sitting near the top of the bin have fused together at an angle that blocks the sensor’s line of sight, even with plenty of empty space below. This tricks the sensor into reading a full bin when there isn’t one, and it’s a simple thing to rule out by rearranging or fully emptying the bin before assuming the sensor itself has failed.
Water Inlet Valve and Line

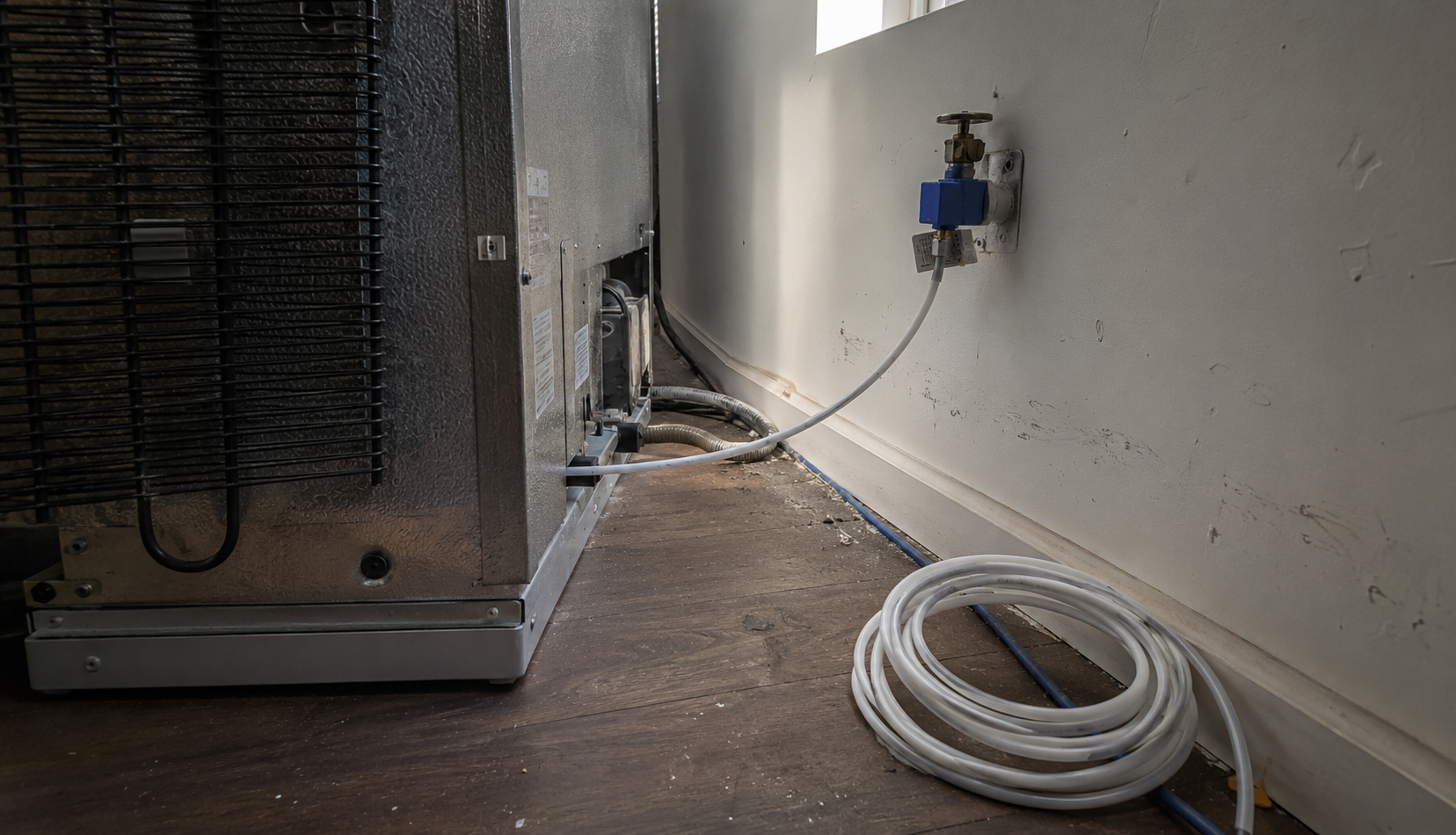

If the sensor checks out fine, the water inlet valve is the next likely suspect. This part opens to admit water during each fill cycle and wears out gradually from years of repeated use. A failing valve tends to produce either a faint clicking sound with no actual water reaching the mold, or total silence during what should be an active fill.
KitchenAid units can be somewhat sensitive to low water pressure. Before assuming the valve itself has failed, confirm household pressure at that line isn’t sitting below roughly 20 PSI, since a valve that tests electrically fine can still under-deliver water if pressure’s marginal.
The fill tube connecting the valve to the mold can freeze independently of the valve working correctly, too. If you hear the valve engage but never see water reach the mold, check the tube for a visible ice blockage before replacing a valve that might be functioning perfectly well.
A frozen fill tube usually clears with nothing more than time and warmth. Disconnect it if you can access it easily, and let it sit at room temperature for a couple of hours before reconnecting. It’s a five-dollar fix in terms of effort, and it’s surprising how often people jump straight to ordering a new valve over a problem that a simple thaw would have resolved just as well.
Filter Age Affects More Than Taste
Most people miss this entirely, but an old or clogged water filter doesn’t just affect how the ice tastes. It restricts flow enough to slow production dramatically or produce small, hollow cubes, and in more severe cases it can choke flow enough to look like a total stoppage rather than just reduced output.
KitchenAid recommends filter replacement roughly every six months. If you’re not sure when yours was last swapped, that’s worth checking before assuming a mechanical failure elsewhere in the system. A filter well past its interval is a cheap, easy thing to rule out compared to chasing a valve or control board issue that isn’t actually the problem.
After installing a new filter, expect a few cycles of cloudy or oddly shaped ice while trapped air works its way out of the line. This is completely normal and clears up within a day of regular use. It’s not a sign the new filter’s faulty, and swapping it again over cloudy ice alone usually just wastes a second filter without addressing anything.
A Full Reset Solves More Than You’d Expect
A meaningful share of KitchenAid ice maker complaints resolve with nothing more than a complete power cycle. The control board occasionally lands in a confused state where it’s receiving power but not properly executing its fill-freeze-harvest sequence, and flipping just the ice maker’s own switch doesn’t always clear that.
Unplug the entire refrigerator for a full fifteen minutes rather than just toggling the ice maker’s own on/off control. From experience, the smarter move is always trying the full reset before anything else, since it costs nothing and resolves more cases than its simplicity suggests it should.
If your model has a visible test or diagnostic mode, usually accessed by holding the reset button for an extended period, running it after any power cycle confirms whether the mechanical sequence completes properly, rather than waiting a full day to find out through normal use.
Freezer Temperature and Airflow Still Matter
KitchenAid ice makers need the same roughly 0°F freezer environment any ice maker requires, and it’s worth confirming actual temperature with an independent thermometer rather than trusting the display, which can drift several degrees over time without anyone noticing.
Overpacked freezer shelves are an easy-to-miss cause of slowed rather than fully stopped production. Several KitchenAid models route a dedicated airflow vent to the ice maker compartment specifically, and blocking that vent with stored food can starve the mold of cold air while the rest of the freezer holds a completely normal temperature.
This shows up most often after a big grocery trip or around the holidays, when freezers get packed tighter than usual for a stretch and ice production tapers off quietly without anyone connecting the two. Pull items away from the vent, typically located near the back or top corner of the ice maker compartment depending on the model, and give it a full cycle to recover before assuming anything mechanical has failed. Nothing about this looks broken from the outside; the freezer’s cold, the seal’s intact, and the ice maker still attempts its normal cycle. It just can’t reach the specific temperature it needs in that one spot.
What Most People Don’t Know
KitchenAid’s ice maker mold heater, the small element that briefly warms the mold to release finished ice at the end of each cycle, fails without triggering any obvious symptom beyond the unit simply not producing ice. There’s no noise. Most models show no dedicated error light for it. The unit keeps attempting its normal cycle and keeps failing to release ice, and every other part of the mechanism still looks and sounds completely functional.
You can sometimes catch this by feeling the mold housing right as a harvest cycle should be completing. If it stays cold with zero warming at all, the heater element is the more likely culprit, not the motor and not the water supply. It’s one of the least-checked parts on any troubleshooting list, mostly because nothing about the symptom points toward it directly.
Confirming a heater failure typically requires a multimeter check for continuity across the element itself, which is a step beyond what most people want to attempt without some comfort working around appliance electronics. If everything else on this list has checked out and the unit still won’t release finished ice, this is worth mentioning specifically if you do end up calling in a technician, since it narrows the diagnosis considerably before they even arrive.
Moving Forward
Check the sensor or feeler arm first, since that alone resolves more cases than anything else here. Move to the water valve and filter next, then a full power cycle, then temperature and airflow. Work through it in that order and most KitchenAid units get sorted well before a full ice maker replacement becomes necessary.
