A cold shower at 6 AM usually sends people straight into panic mode. I’ve dealt with that exact situation more times than I can count, standing in dark utility rooms trying to figure out why the water suddenly turned ice cold overnight. In many cases, the problem came down to one tiny flame most homeowners never think about until it disappears — the pilot light.
Not every water heater has one. That’s where confusion starts. Older gas models usually rely on a pilot light to ignite the burner, while many modern systems use electronic ignition instead. Electric water heaters don’t use pilot lights at all. I’ve seen homeowners waste hours searching for a pilot light that simply doesn’t exist on their unit.
Knowing whether your water heater has a pilot light changes everything. It determines how you troubleshoot heating problems, how you relight the system safely, and whether the issue is something simple or something that needs professional repair. Once you identify your heater type, the rest becomes much easier.
Gas Water Heaters Usually Have Pilot Lights
Gas water heaters have traditionally relied on a small flame called a pilot light to ignite the main gas burner. I’ve worked on dozens of older tank systems where that tiny flame was the entire reason the household had hot water. When it goes out, the burner never fires up, and the water inside the tank stays cold.
Most traditional gas heaters place the pilot light near the bottom of the unit behind a small access panel. You’ll usually find a gas control knob labeled “Pilot,” “On,” and “Off.” Older units often require manual lighting with a long lighter or igniter button. I still remember the first time I relit one years ago — the clicking sound followed by that sudden blue flame felt oddly satisfying.
Modern gas heaters are different in many cases. Some newer models use electronic ignition systems instead of standing pilot lights. These systems ignite automatically only when hot water is needed, which improves energy efficiency. Most people don’t realize this shift happened because the outside appearance of the heater often looks almost identical.
The easiest clue is the energy source. If your heater runs on natural gas or propane, there’s a strong chance it either has a pilot light or an ignition system. Electric units don’t use gas flames at all.
Electric Water Heaters Don’t Use Pilot Lights
Electric water heaters work in a completely different way. Instead of burning gas, they use heating elements powered by electricity. I’ve seen homeowners crouched beside electric tanks searching for a pilot light access door that simply wasn’t there. That confusion happens constantly.
Inside an electric heater are metal heating elements similar to oversized kettle coils. When electricity flows through them, they heat the surrounding water directly. No flame. No gas valve. No ignition process. That means if your electric heater stops producing hot water, the issue is usually related to power supply, thermostats, heating elements, or circuit breakers.
One mistake I made early on was assuming all water heaters shared similar troubleshooting steps. They don’t. Trying to relight a nonexistent pilot light wastes time and can distract you from the real problem. I’ve found tripped breakers to be the hidden culprit in many electric heater failures, especially after storms or power fluctuations.

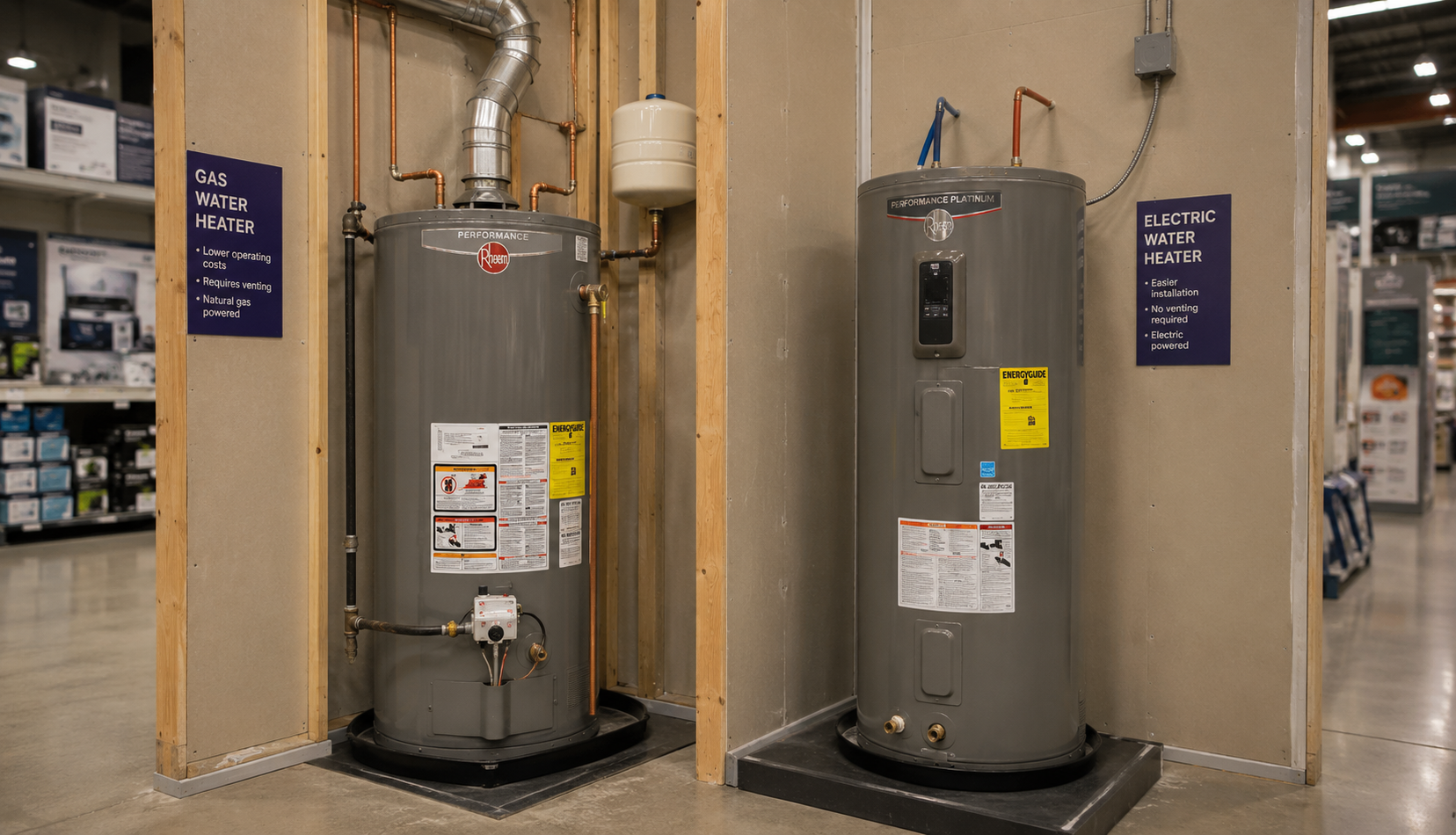

A quick look at the heater usually tells the story. Electric models often have no vent pipe on top because there’s no combustion happening inside. Gas heaters almost always have a venting system to remove exhaust gases safely.
Newer Water Heaters Often Use Electronic Ignition
Technology changed water heaters more than most homeowners realize. Many newer gas models no longer keep a pilot flame burning 24/7. Instead, they use electronic ignition systems that spark only when heat is needed. I’ve installed several of these newer units, and they’re noticeably more efficient.
Standing pilot lights constantly consume a small amount of gas. It’s not huge, but over years, the cost adds up. Electronic ignition systems eliminate that constant flame, reducing wasted fuel. Manufacturers moved heavily toward these systems for better efficiency ratings and lower operating costs.
The difference becomes obvious during troubleshooting. With a traditional pilot system, you can usually see the flame through a small viewing window. Electronic ignition models may remain completely dark until the unit actively heats water. That throws off many homeowners because they assume the heater isn’t working.
Most people miss the instruction label attached directly to the tank. I always tell homeowners to read it carefully before touching anything. The lighting procedure printed there reveals whether the unit has a standing pilot or an electronic ignition setup. That label can save a lot of frustration.
Signs Your Pilot Light Has Gone Out
Cold water is the biggest warning sign, but it’s rarely the only one. In older gas heaters, a failed pilot light often creates a chain reaction of symptoms. I’ve seen homeowners ignore subtle clues for days before realizing the heater stopped working completely.
One common sign is hearing the burner fail repeatedly. You may notice clicking sounds without ignition or brief attempts to start followed by silence. Some units also trigger blinking error lights on the gas control valve. Modern heaters are much better at self-diagnosis than older systems were.
A draft is another frequent cause. I’ve relit pilot lights that kept going out because nearby doors created strong airflow in cramped utility rooms. Dirty thermocouples are also common. The thermocouple is a safety device that senses the pilot flame. If it becomes dirty or worn, it may shut off the gas even when the flame appears normal.
The smell of gas deserves immediate attention. If you ever smell strong gas around the unit, stop immediately and avoid attempting relighting yourself. I’ve seen minor issues escalate because someone ignored that warning sign. Shut off the gas supply and contact a professional right away.
How To Check If Your Water Heater Has a Pilot Light
Finding out takes less than two minutes in most homes. I usually start by checking the energy label or manufacturer sticker on the tank. If it says “electric,” there’s no pilot light. If it says “natural gas” or “propane,” the next step is inspecting the lower section of the heater.

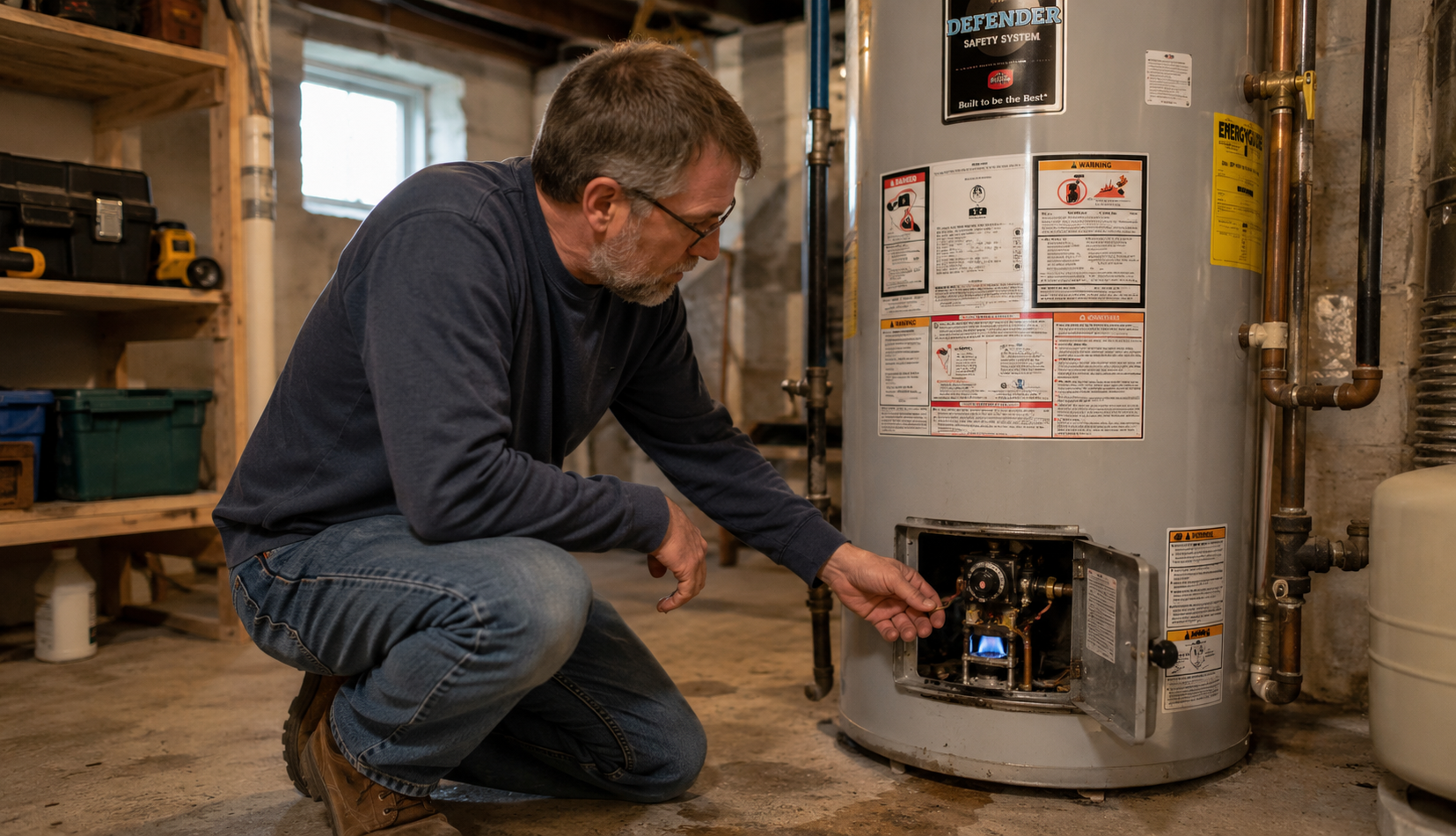

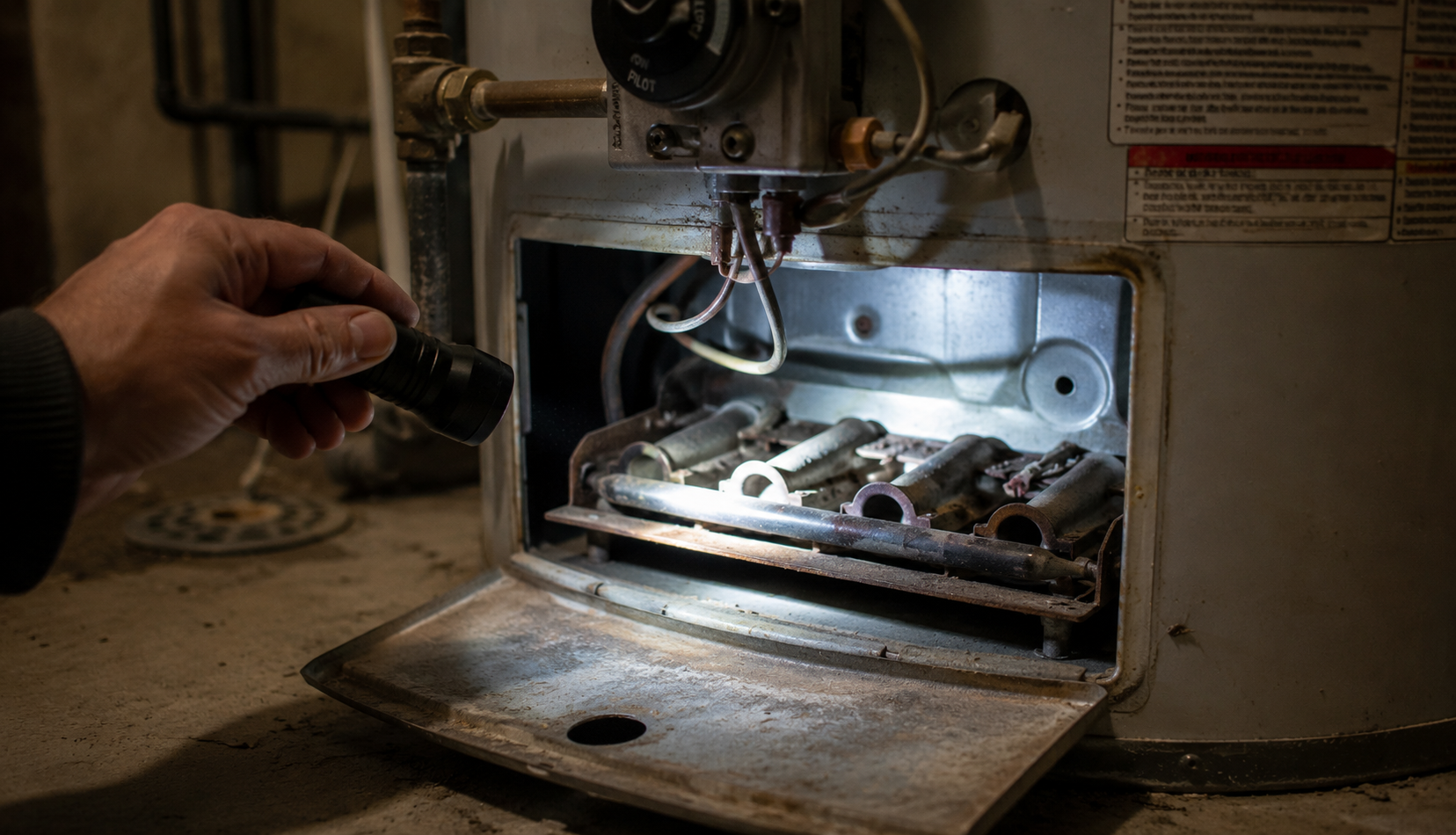

Most traditional gas units have a small access panel near the bottom. Behind it, you’ll often see the pilot assembly and burner compartment. Some heaters include a tiny viewing window where you can see the flame directly without removing anything.
The control valve also gives clues. If you see settings labeled “Pilot,” your heater almost certainly uses one. Electronic ignition systems may instead show digital indicators or spark ignition controls. I’ve noticed many homeowners overlook these labels even though they provide the answer immediately.
Your owner’s manual is another reliable source. Most manuals clearly explain whether the unit has a standing pilot light or electronic ignition. If the manual is missing, the model number usually leads to online documentation within minutes.
Relighting a Pilot Light Safely
Safety matters more than speed here. I’ve relit countless pilot lights over the years, and rushing the process is where mistakes happen. Gas appliances deserve patience and attention.

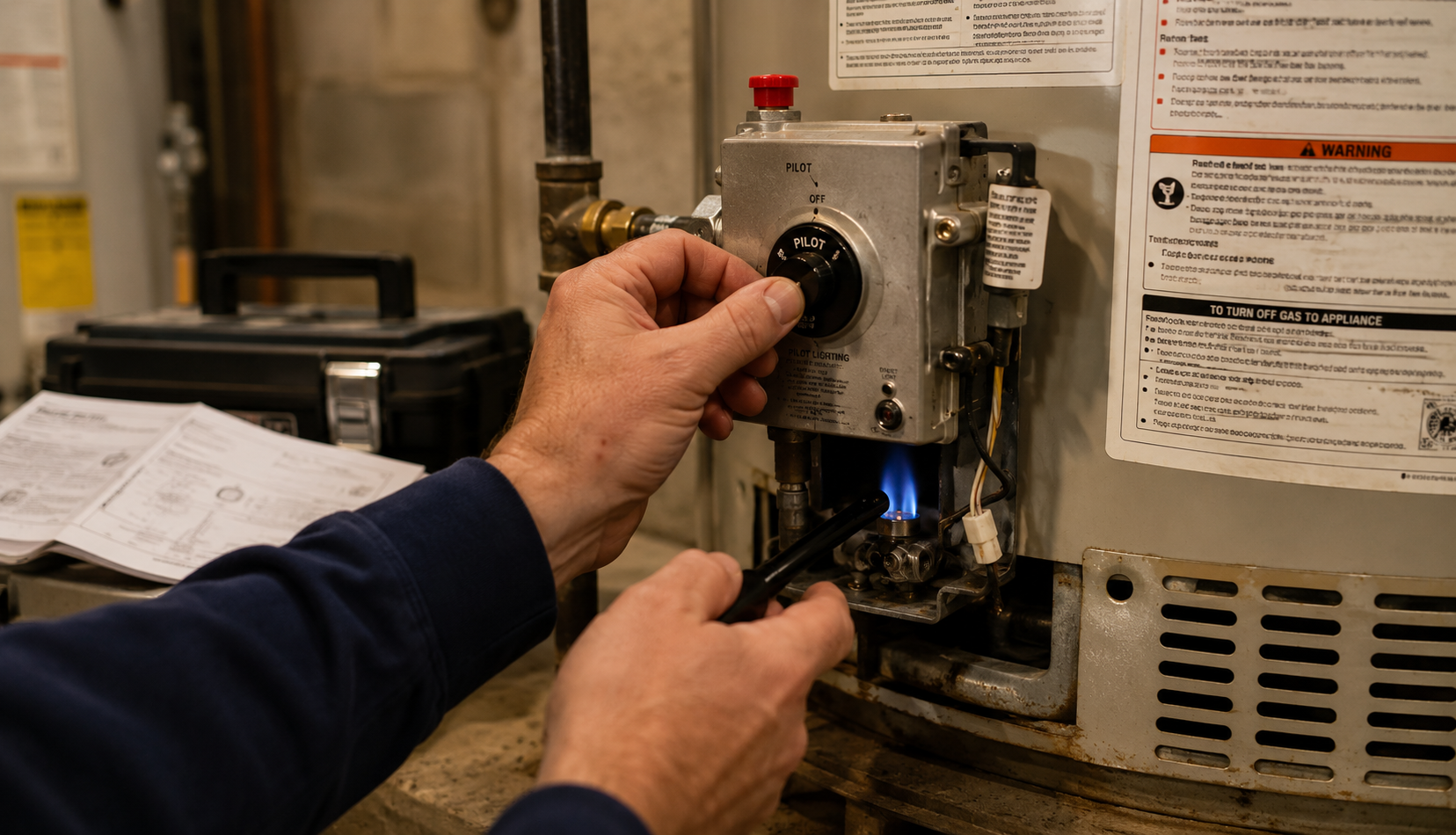

Start by turning the gas control knob to “Off” and waiting several minutes. This clears any lingering gas from the chamber. After that, switch the knob to “Pilot,” press and hold it down, then ignite the flame using the built-in igniter or a long lighter depending on the model.
Once the flame appears, continue holding the knob for around 30 to 60 seconds. That allows the thermocouple to heat properly. Releasing too early is one of the most common reasons the pilot won’t stay lit. I learned that lesson the hard way years ago after repeating the process five times unnecessarily.
If the pilot repeatedly goes out, deeper issues may exist. Faulty thermocouples, gas valve problems, or ventilation issues often require professional repair. Persistent relighting attempts won’t solve those underlying problems and can sometimes make the situation more dangerous.
Final Thoughts
Whether a water heater has a pilot light depends entirely on the type and age of the system. Older gas heaters usually rely on one, newer gas models may use electronic ignition, and electric units don’t use pilot lights at all. I’ve found that identifying the heater type first prevents most troubleshooting mistakes homeowners make.
The next step is simple: check the energy source and control panel on your water heater today. That one quick inspection can immediately tell you how your system works and what to do if hot water suddenly disappears again.
