A failing hot water heater thermostat can turn a normal morning into a freezing disaster fast. I’ve walked into basements where the water was scalding one day and ice cold the next, all because of a thermostat that quietly gave up after years of abuse from heat, sediment, and electrical cycling. Most homeowners assume the entire water heater is dying when the real culprit is a small part that usually costs far less than a full replacement.
I’ve replaced thermostats on old electric tanks covered in mineral buildup, newer units with hidden wiring problems, and systems where the thermostat wasn’t even the actual issue. The good news is that changing one isn’t overly complicated if you approach it carefully and understand what you’re looking at before touching the wiring.
This guide walks through the full process in plain language. You’ll learn how to identify a bad thermostat, safely remove the old one, install the replacement correctly, and avoid the mistakes that cause most DIY repairs to fail the first time.
Signs Your Water Heater Thermostat Has Failed
Water temperature problems usually show up gradually before the thermostat completely fails. I’ve seen heaters swing from lukewarm to dangerously hot over a few weeks while the homeowner blamed the heating elements or sediment buildup. In many cases, the thermostat was simply misreading the tank temperature and sending bad signals.
Inconsistent hot water is the biggest warning sign. If the shower suddenly turns cold halfway through or the water gets hotter than normal without adjusting the faucet, the thermostat may no longer regulate the heating cycle properly. Electric water heaters commonly use two thermostats, so sometimes only the upper or lower section fails, which creates confusing symptoms.
Another common clue is a reset button that keeps tripping. Most people miss this entirely. They press the reset, get hot water for a day, then ignore the deeper issue. I’ve seen overheating thermostats repeatedly trigger the safety switch because the contacts inside were sticking shut.
Burn marks, melted insulation, or a faint electrical smell near the access panel are serious indicators. The mistake I made early on was assuming a thermostat could only fail electronically. Some fail physically from heat damage, loose wiring, or corrosion. When that happens, replacement becomes urgent rather than optional.
Understanding How Water Heater Thermostats Work
Electric water heaters typically use an upper thermostat and a lower thermostat. The upper unit controls power distribution while the lower one maintains the majority of the tank’s temperature. Once you understand that system, diagnosing problems becomes much easier.
The upper thermostat activates first when the tank cools down. It heats the top portion of the water before transferring power downward. If the upper thermostat fails, you may lose hot water entirely because electricity never reaches the lower section. I’ve seen homeowners replace perfectly good heating elements because they didn’t realize the upper thermostat controlled the entire sequence.
The lower thermostat handles long-term temperature maintenance. When this one fails, you’ll often get a short burst of hot water that fades quickly. That symptom confuses many people because the heater technically still works. It just can’t keep the lower half of the tank heated consistently.
Most residential thermostats sit behind metal access panels covered by insulation. They’re held tightly against the tank surface because accurate metal-to-metal contact is essential for proper temperature readings. If the replacement thermostat doesn’t sit flush, temperature regulation becomes unreliable. I always double-check that before restoring power.

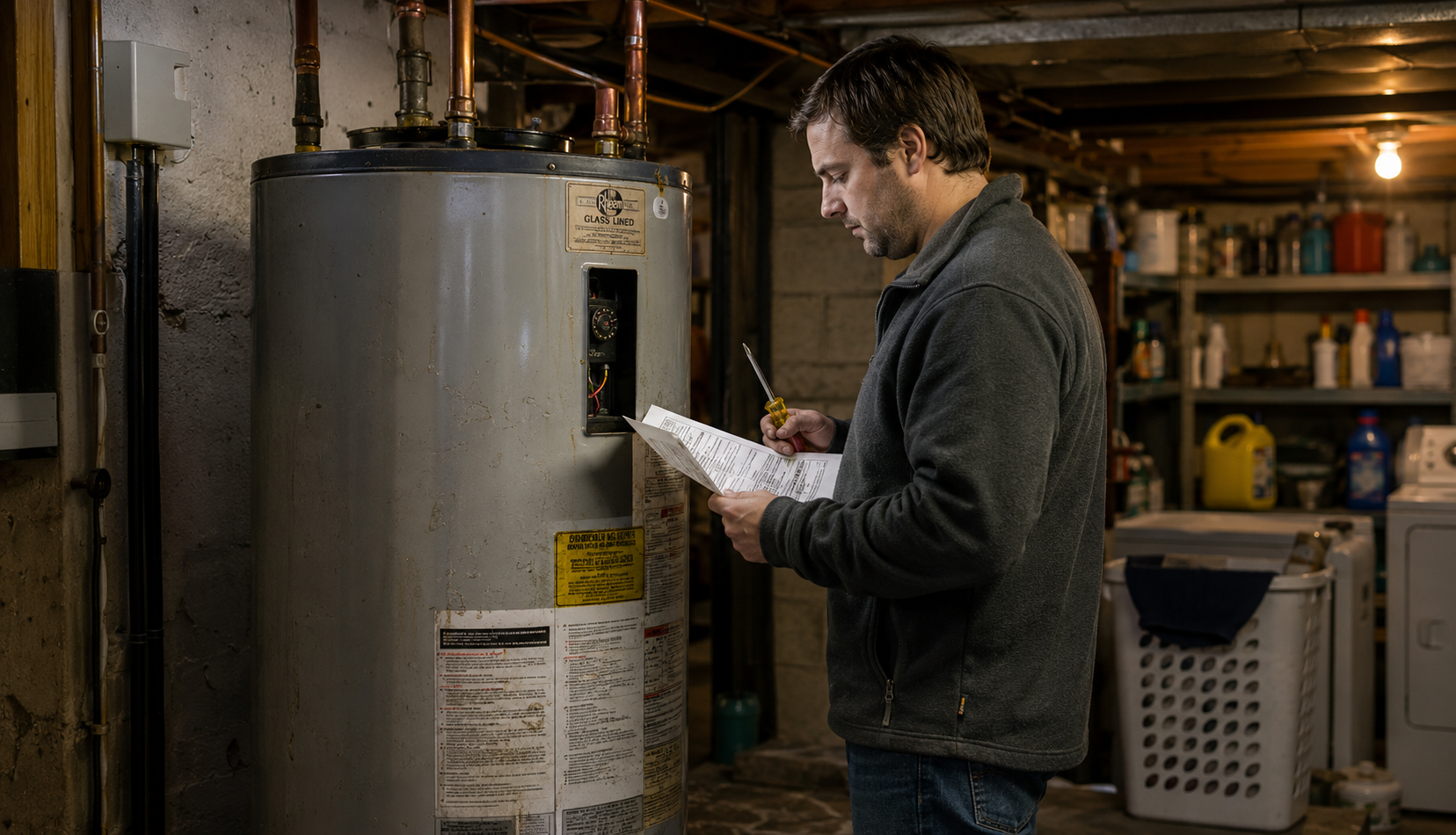

Preparing Safely Before Removing the Thermostat
Electric water heaters carry enough voltage to cause serious injury. I never touch a thermostat until I verify the power is fully disconnected at the breaker panel. Turning the thermostat itself down isn’t enough. The breaker must be off, and the voltage should be tested directly.
Start by locating the correct breaker and switching it off completely. Then remove the metal access panel on the heater using a screwdriver. Pull back the insulation carefully because you’ll need to reinstall it later. Behind that insulation, you’ll see the thermostat and wiring connections.

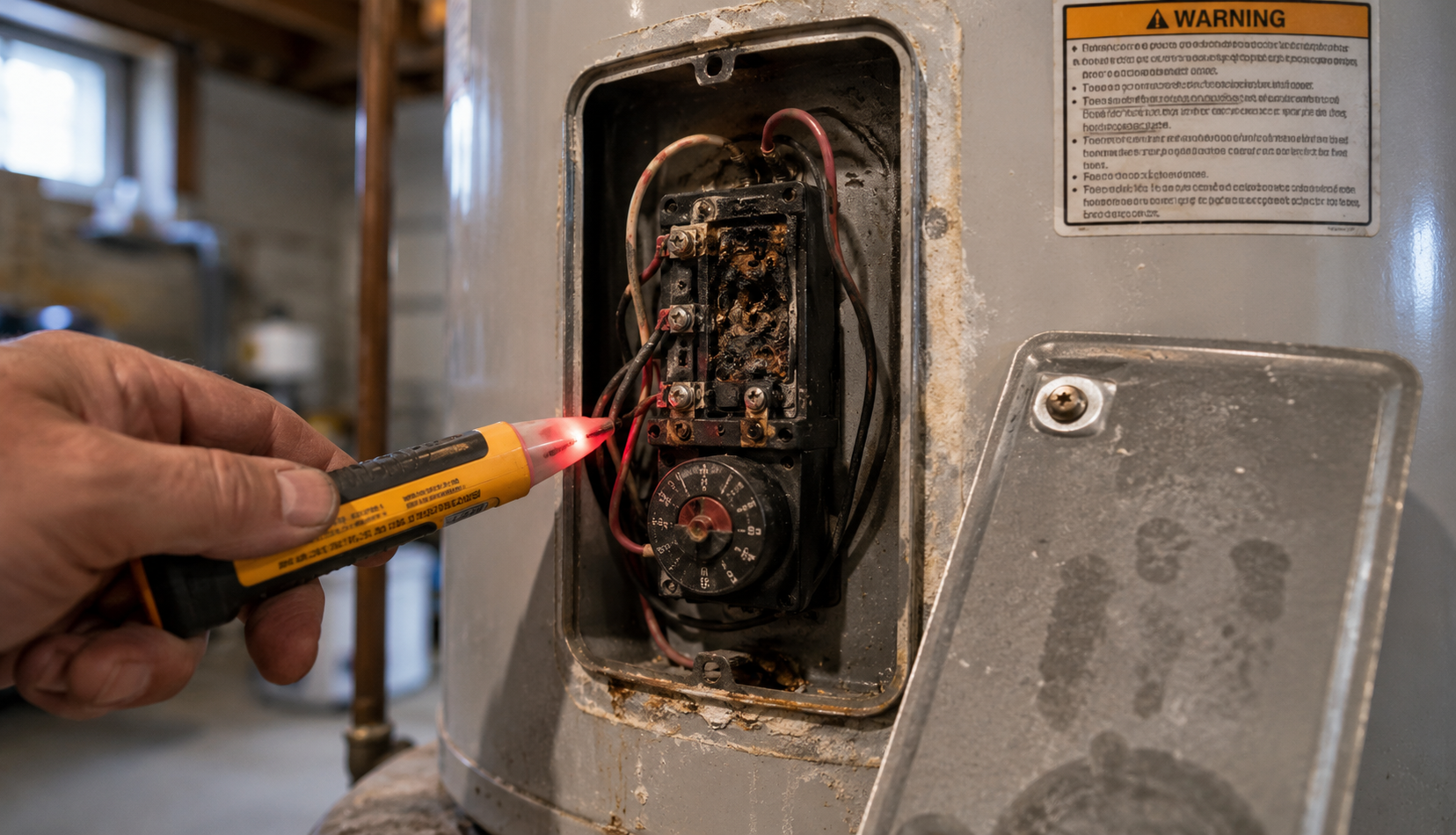

I always use a non-contact voltage tester before touching anything. I’ve encountered mislabeled breaker panels more times than I can count. One house had three separate circuits feeding nearby equipment, and the water heater label was completely wrong. Trust the tester, not the handwriting on the breaker box.
Take a clear photo of the wiring before disconnecting anything. That single step saves massive frustration later. Wire placement matters, especially on dual-element systems. Most thermostat replacement mistakes happen because people assume they’ll remember where everything goes after removing the old part.

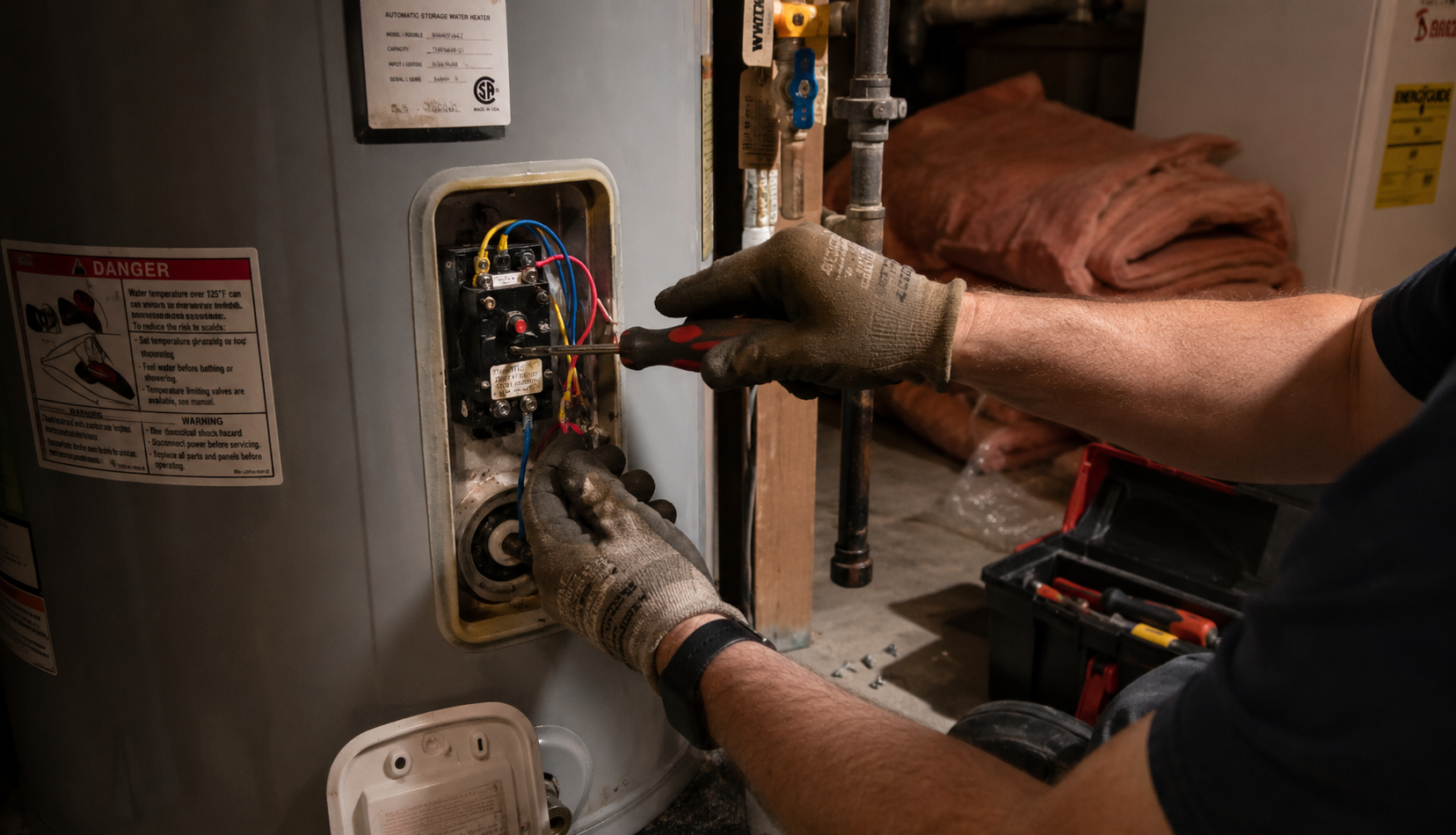

How to Change a Hot Water Heater Thermostat Step by Step
Once the power is confirmed off, loosen the terminal screws holding the wires to the thermostat. I prefer removing one wire at a time instead of disconnecting everything at once. It reduces confusion and keeps the wiring layout easier to follow during installation.
After disconnecting the wires, carefully release the thermostat from its retaining clips. Most slide outward with gentle pressure. Avoid bending the retaining bracket too aggressively because the new thermostat needs firm contact against the tank surface to work properly.
Before installing the replacement, compare it directly to the old thermostat. I’ve seen subtle differences in voltage ratings, mounting shape, and terminal layout cause problems later. The thermostat should match the original specifications exactly. Even if it physically fits, the wrong rating can lead to overheating or poor performance.
Slide the new thermostat securely into position and reconnect the wires firmly. Loose terminals create heat buildup and electrical arcing over time. I tighten each screw carefully without overtightening. After reinstalling the insulation and access panel, restore power and allow the tank time to heat fully before testing water temperature.
Common Mistakes That Cause Thermostat Replacement Problems
One of the biggest DIY mistakes is replacing only one thermostat without testing the other components first. I’ve seen people swap the upper thermostat three times while the actual issue was a burned-out lower heating element. A thermostat replacement should always include a broader inspection of the system.
Incorrect temperature settings create another problem. Some homeowners immediately crank the thermostat to maximum heat thinking hotter equals better. That usually leads to scalding water, higher electricity bills, and excessive stress on the heating elements. I normally recommend setting it around 120 degrees for a safe balance between comfort and efficiency.
Poor insulation placement is another issue that gets overlooked constantly. The insulation behind the access panel helps the thermostat sense temperature accurately. If it’s left hanging loosely or removed entirely, the thermostat may cycle improperly. I learned this the hard way years ago after a repair call where the heater kept overheating despite a brand-new thermostat.
Loose wiring can silently destroy the replacement part. Even slightly weak terminal connections generate heat over time. I’ve opened panels where the thermostat itself was fine but the surrounding wires were blackened from arcing. Tight, secure electrical connections matter just as much as the replacement itself.
When the Thermostat Isn’t Actually the Problem
Not every hot water issue points directly to the thermostat. Sediment buildup inside the tank can mimic thermostat failure because the heating elements struggle to transfer heat through layers of mineral deposits. I’ve drained tanks that sounded like gravel mixers from years of buildup.
Heating elements fail frequently as well, especially in areas with hard water. A bad lower element often causes short hot water cycles that people mistakenly blame on the thermostat. Testing the elements with a multimeter before replacing parts can save time and money.
Wiring problems also create misleading symptoms. Burned terminals, damaged insulation, or partially melted connectors can interrupt power flow unpredictably. I’ve seen thermostats replaced unnecessarily when the real issue was a loose wire hidden behind insulation.
Sometimes the water heater itself is simply near the end of its lifespan. If the tank is leaking, heavily rusted, or over ten to fifteen years old, replacing individual components may only buy limited time. At that stage, investing in a full replacement usually makes more financial sense than chasing repeated repairs.
Final Thoughts
Changing a hot water heater thermostat is one of those repairs that looks intimidating until you understand the system and approach it methodically. The key is shutting off power completely, matching the replacement correctly, and paying close attention to wiring and thermostat placement against the tank.
If your water temperature has become unreliable, don’t ignore the early signs. A failing thermostat rarely fixes itself, and waiting too long can damage other components inside the heater. Start by testing the thermostat and inspecting the wiring carefully before assuming the entire water heater needs replacement.
