Fix Frigidaire Gallery Ice Maker: Step-by-Step Guide

The first time I dealt with a Frigidaire Gallery ice maker complaint, the issue was almost identical to three other cases I’d seen on the same model line within a single month — a recurring freeze-up pattern that’s specific enough to Frigidaire’s Gallery series design that it’s worth calling out before anything else. Frigidaire Gallery refrigerators use an ice maker assembly that’s prone to a particular type of internal freeze-up around the fill tube and mold area, more so than some competing brands, and recognizing this pattern early saves a lot of unnecessary part-swapping. Here’s exactly how to diagnose and fix an ice maker on the Frigidaire Gallery line, starting with the issue specific to this product line.

The Frigidaire Gallery Freeze-Up Pattern

What surprised me about Frigidaire Gallery units specifically is how often the actual cause is ice buildup around the fill tube rather than any failed component. The fill tube delivers water into the ice mold during each cycle, and on Gallery models, this area is prone to accumulating frost and ice over time, eventually blocking water delivery entirely even though the rest of the system — water inlet valve, module, water line — is functioning correctly. This produces a symptom pattern of an ice maker that worked fine for months and then gradually slowed down before stopping completely, rather than failing suddenly.

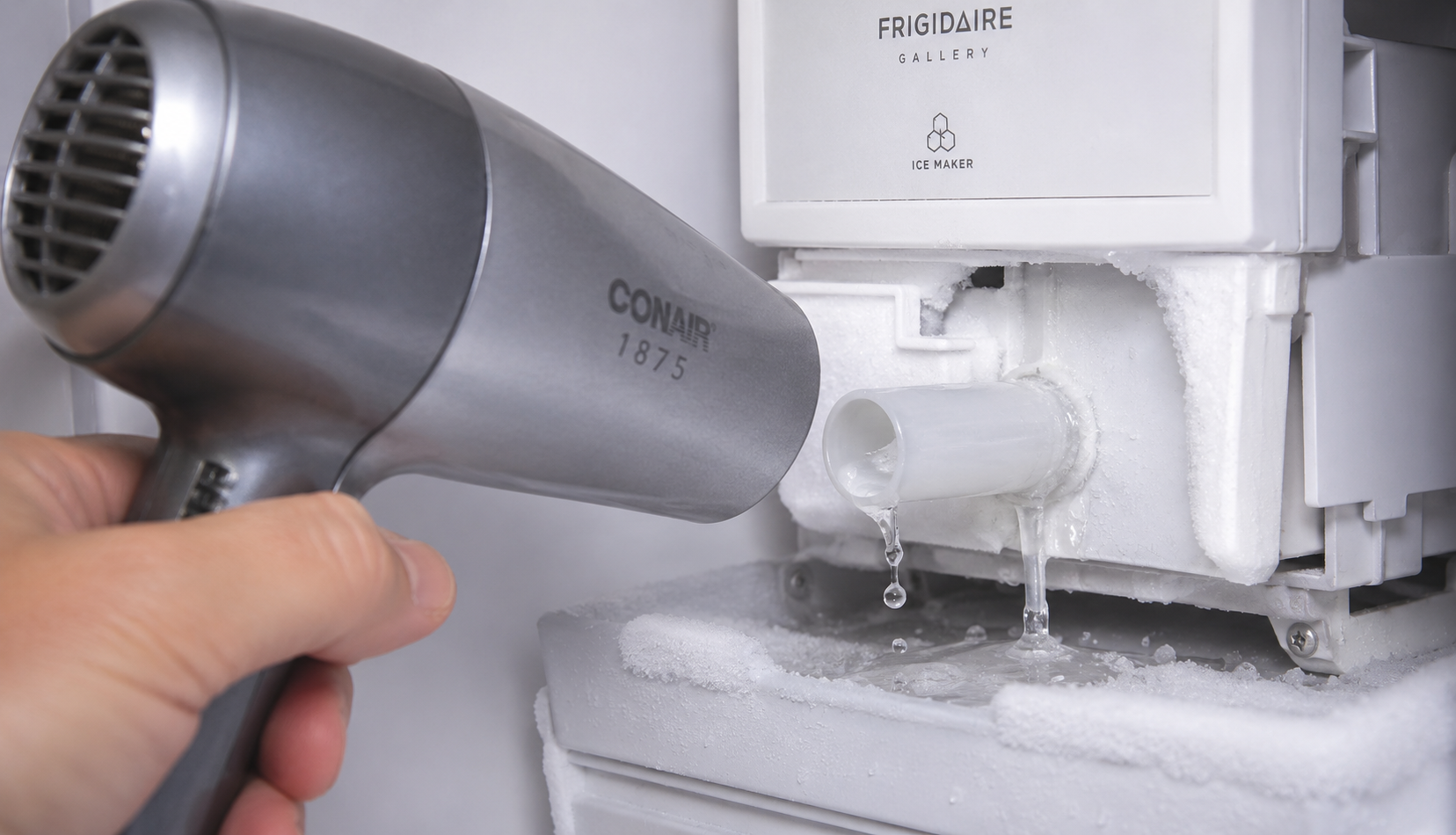

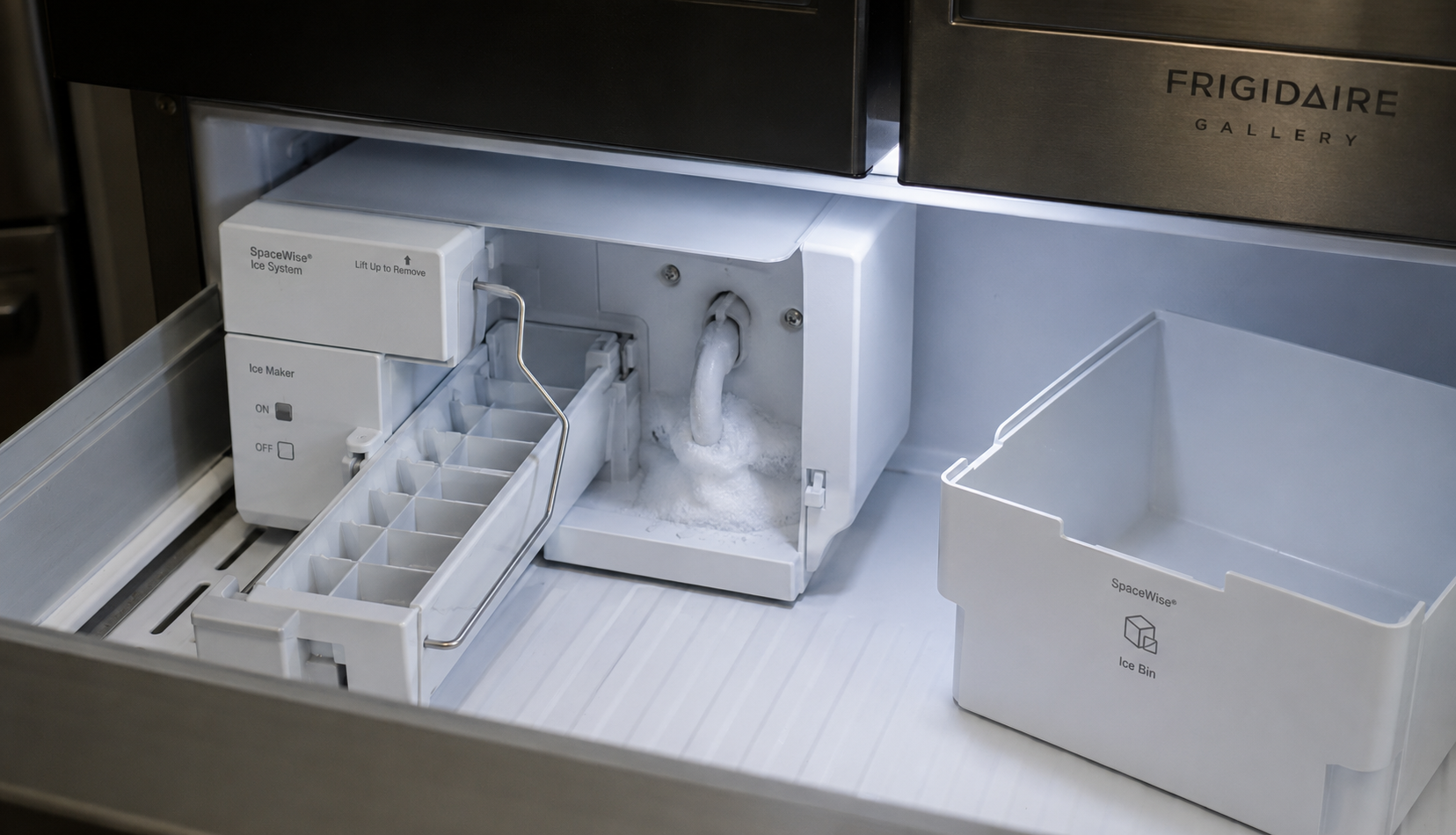

To check for this, remove the ice bin and visually inspect the fill tube area near the back of the ice maker assembly for visible ice buildup or frost blocking the opening. If you find this, the fix is straightforward: unplug the refrigerator, and use a hair dryer on low heat to carefully melt the ice blockage around the fill tube without applying excessive heat directly to any plastic components for extended periods. Once cleared, plug the unit back in and allow a full cycle to confirm normal water delivery has resumed.

This freeze-up pattern tends to recur on Gallery models more than on some other Frigidaire lines, often tied to humidity levels in the kitchen or how frequently the freezer door is opened. If the blockage returns within a few weeks of clearing it, this is a known characteristic of the design rather than a sign of a deeper mechanical failure — periodic manual clearing every few months may simply be part of normal maintenance for this specific model line.

Frigidaire Gallery Ice Maker Reset

From experience, performing a proper reset is worth doing immediately after clearing any freeze-up, or as a first step if no visible ice blockage is found. Most Frigidaire Gallery ice makers include a small test or reset button on the front of the unit, separate from any control panel that may be present elsewhere on higher-end Gallery French door models. Press and hold this button for several seconds until you hear the unit begin a test cycle — typically the water valve opening briefly followed by mechanical movement.

On Gallery models that integrate ice maker controls into the main refrigerator’s digital control panel rather than a standalone button, check your specific model’s manual for the exact menu navigation, since Frigidaire’s control panel designs vary across different Gallery series years and configurations. After triggering whichever reset method applies, give the unit a full 24-hour cycle before concluding the reset wasn’t successful — this is standard across all ice maker brands, since the complete fill-freeze-harvest cycle takes time regardless of manufacturer.

Frigidaire PureSource Water Filter Issues

I’ve seen this go wrong on enough Frigidaire Gallery units that it deserves specific mention: Frigidaire’s proprietary PureSource filter line needs to be either genuine or a properly certified compatible replacement, since an incompatible aftermarket filter restricts water flow enough to mimic an inlet valve failure almost perfectly. Check the filter’s age first — Frigidaire recommends replacement every six months, and a filter well past that interval gradually reduces ice production until it stops appearing to work at all.

Locate the filter, typically in the upper right interior corner or the base grille depending on your specific Gallery model configuration, and confirm it’s seated correctly with a proper quarter-turn lock. A damaged or pinched O-ring seal on a recently installed filter can restrict flow even when the filter itself is brand new — reseating it carefully or trying a different filter resolves this in most cases.

After any filter replacement on a Frigidaire Gallery unit, run several cups of water through the dispenser to clear air from the line before expecting normal ice production to resume. The first few ice maker cycles after a filter change may also produce cloudy or oddly shaped ice temporarily, which resolves within a day of normal use and isn’t a sign the new filter installation failed.

Water Inlet Valve and Dispenser Auger on Gallery Models

The water inlet valve diagnosis on Frigidaire Gallery refrigerators follows the same general principle found across most major brands — located behind a rear access panel, testable with a multimeter for the correct resistance value specified in your model’s service documentation. A valve that fails this test needs replacement, with Frigidaire-specific parts typically costing $20–$55 depending on the exact Gallery model and configuration.

On Gallery French door models with a door-mounted dispenser, the auger motor responsible for moving finished ice to the dispenser can fail independently from the ice maker itself — producing the familiar symptom of ice visibly present in the bin but nothing dispensing when activated. Frigidaire Gallery auger motor replacement parts run $40–$85, and access typically requires removing the ice bin assembly from its mounting position inside the freezer.

Low household water pressure can mimic inlet valve failure on Frigidaire units just as it can on any other brand. Frigidaire ice makers generally require similar minimum pressure thresholds to other major manufacturers, around 20 psi, so confirming adequate household pressure is worth doing before assuming the valve itself has failed, particularly if the symptom is reduced rather than completely absent water flow.

What Most People Don’t Know: Gallery Series Ice Bins Have a Specific Seating Requirement

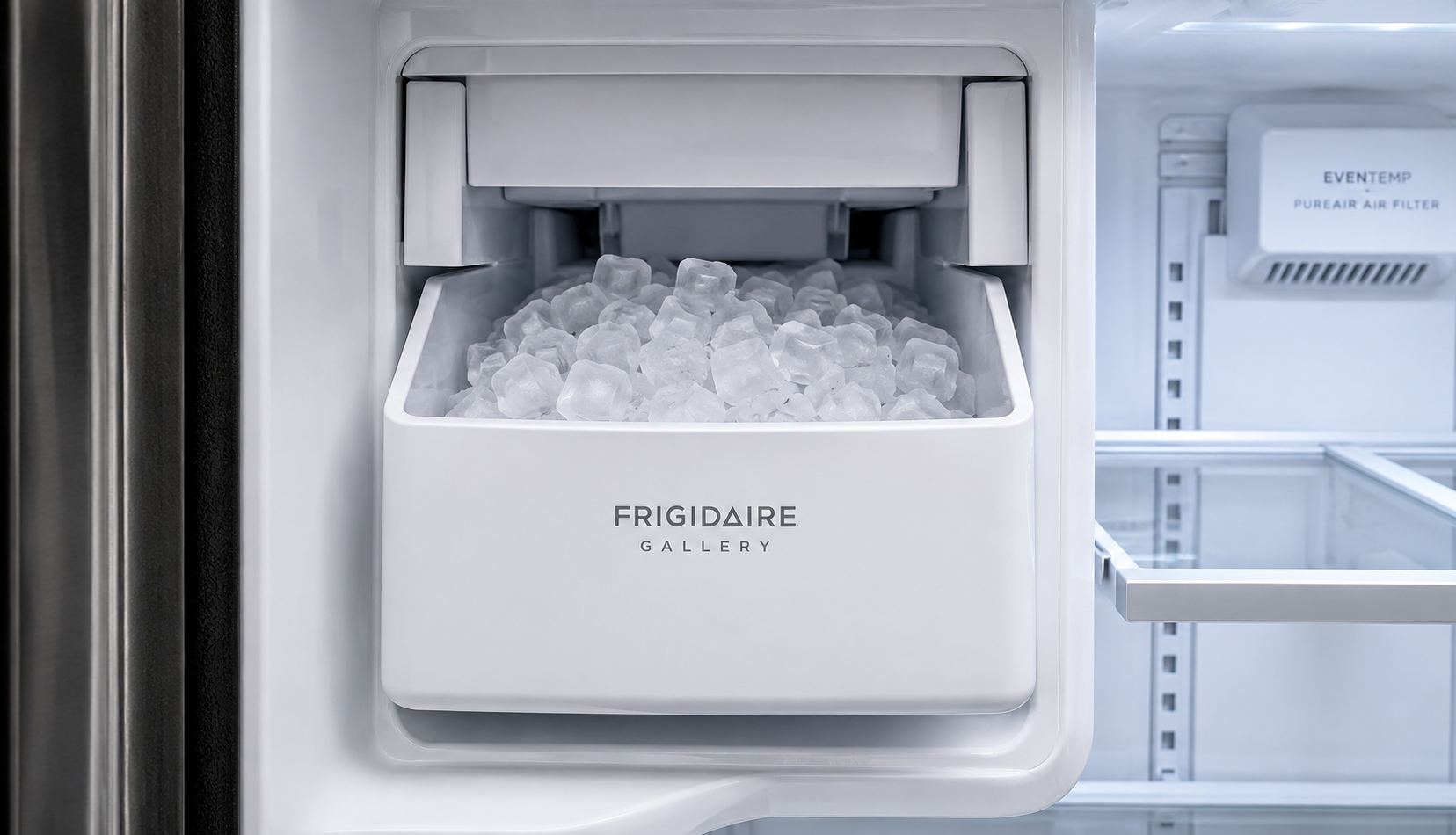

Almost no general troubleshooting guide mentions this, but Frigidaire Gallery ice bins have a more specific seating requirement than some competing brands — the bin needs to click fully into place in a particular orientation, and a bin that’s slightly misaligned, even by a small margin, can trigger a false full-bin sensor reading that stops the ice maker from cycling even though plenty of usable space remains inside the bin. This is distinct from the fill tube freeze-up issue described earlier and produces a different symptom: the ice maker simply stops attempting to produce ice at all, rather than slowing down gradually.

If your Gallery model’s ice maker has stopped cycling entirely with no visible ice buildup anywhere in the assembly, remove the ice bin completely and reseat it carefully, confirming it clicks fully into its mounting position. This takes under a minute to check and resolves a meaningful share of sudden, complete ice maker stoppages on Gallery models specifically.

When to Call a Technician for a Frigidaire Gallery Ice Maker

Clearing fill tube freeze-up, performing the reset, checking the filter, and reseating the ice bin are all genuinely accessible DIY fixes that resolve a large share of Frigidaire Gallery complaints without any parts purchase. Water inlet valve and auger motor replacement are moderate DIY repairs requiring basic tools and comfort accessing the rear panel or ice bin assembly.

Call a Frigidaire-authorized technician when the recurring freeze-up pattern persists even after repeated manual clearing, which can sometimes indicate a deeper issue with the ice maker module’s internal temperature regulation rather than simple environmental ice buildup. Checking warranty coverage before paying out of pocket is worthwhile — contact Frigidaire customer service with your model and serial number to confirm whether your specific Gallery unit still falls within any extended component coverage windows.
