Dinner was planned, the oven was set, and thirty minutes later the food was stone cold and raw. My oven not heating up turned out to be a snapped bake element — a part I replaced myself for twenty-two dollars in about forty minutes. The frustrating truth about ovens that won’t heat is that they almost always fail for one specific, fixable reason. Whether you have an electric oven not heating up or a gas oven not heating up, the diagnostic process is logical and the most common faults are well within DIY repair range. This guide walks through every cause in the order you should check them — starting with the components that fail most often and working toward the ones that require more involved diagnosis.
Check the Circuit Breaker Before Anything Else
The first time I dealt with an oven not heating up, I went straight for the back panel. The actual problem was a tripped circuit breaker, something a thirty-second check would have caught immediately. Electric ovens run on a dedicated 240-volt circuit — two 120-volt legs combined. If one leg trips, the oven control panel may still power on and display normally, but the bake element and broil element lose power entirely. The oven appears to work — it preheating display counts up — but no heat is produced inside the cavity.
Go to your electrical panel and locate the double-pole breaker labelled for the oven or range. If it’s tripped even slightly — sitting between on and off rather than fully in either position — reset it completely by switching it fully off first, then back on. If the breaker trips again immediately or within the first cycle, there’s an underlying electrical fault that needs professional attention before the oven repair proceeds any further.
For a gas oven not heating up, the equivalent starting check is the gas supply valve behind the range. It should be parallel to the gas line — fully open. A valve sitting perpendicular to the pipe means gas flow is cut off entirely, and no amount of igniter or component diagnosis will resolve a gas supply problem. Confirm other gas appliances in the home are working before assuming the oven itself is at fault.
Most people miss this completely: the oven fuse on some older electric models is a separate component from the circuit breaker — a ceramic fuse inside the oven control panel or behind the back panel that blows when the circuit is overloaded. If the oven is completely dead — no display, no response — this internal fuse is the first thing to check before suspecting the control board.
The Bake Element: Most Common Cause on Electric Ovens
On electric ovens, the bake element is the single most common cause of an oven not heating up. The bake element is a coiled resistance wire — usually visible as a curved metal bar running across the oven floor or just above it — that generates heat when current flows through it. Over time the element degrades and eventually breaks, opening the circuit and cutting heat production entirely. The oven control board continues to function, the display shows normal operation, but no heat reaches the oven cavity.

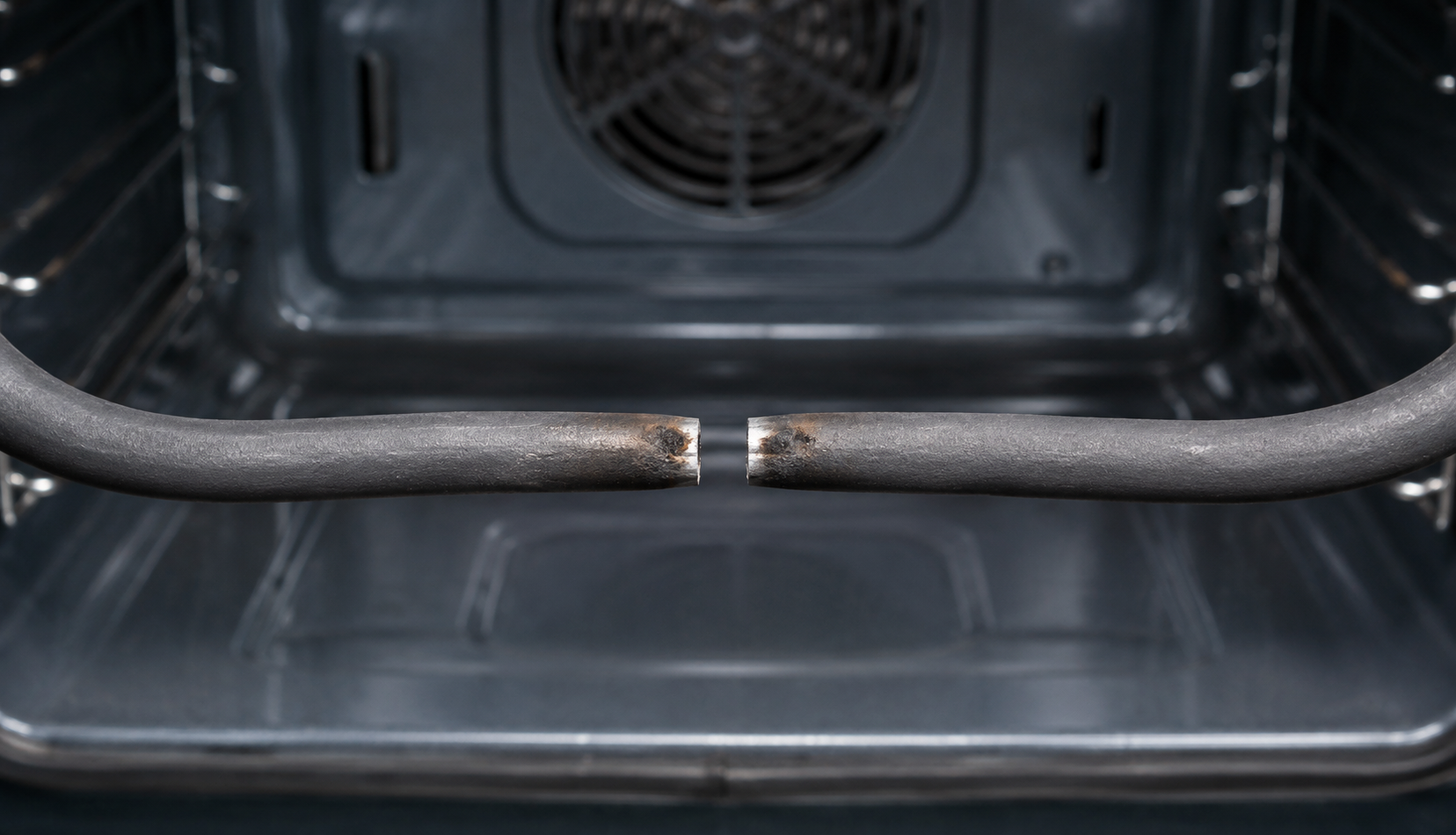

I’ve tested this myself more times than I can count and visible element damage is often detectable before any electrical testing is needed. Open the oven door and inspect the bake element closely — look for a visible break, a crack, a burn mark, or a section where the element has blistered and split. Any visible damage is a confirmed failure. Even without visible damage, a multimeter test for element continuity confirms the diagnosis: touch the probes to the two element terminals at the back of the oven cavity. No continuity means the element has failed and needs replacement.
Bake element replacement is one of the most accessible oven repairs available. The element is held by two screws at the rear of the oven cavity, connected by a wire harness that pulls forward when the element is removed. Disconnect the wires, remove the screws, slide the old element out, connect the new one, and reverse the process. The part costs between fifteen and fifty dollars depending on brand and model. Order by oven model number for the exact specification — element dimensions and wattage vary between models and a mismatched element won’t perform correctly even if it physically fits.
The broil element sits at the top of the oven cavity and fails in the same way. If the oven heats on bake but not on broil — or vice versa — the relevant element is the fault. Test both independently if the oven is showing inconsistent heating behaviour across different bake cycles.
Temperature Sensor and Oven Thermostat Faults
An oven that heats but doesn’t reach the correct oven temperature — or one that cycles off too early during preheating — points to a temperature sensing fault rather than an element failure. The temperature sensor is a thin probe mounted inside the oven cavity, usually at the upper rear wall, that continuously reads internal temperature and feeds that data to the control board. A faulty sensor sends incorrect readings, causing the board to cut heating before the cavity reaches the set temperature or to cycle the element incorrectly throughout the bake cycle.
What surprised me was how often this fault mimics a complete heating failure. An oven not heating up to temperature on sensor failure can feel like no heat at all if the sensor is reading significantly high — telling the board the oven is already at 400°F when it’s only at 150°F. The element never gets a signal to run long enough to reach actual cooking temperature. Testing the temperature sensor with a multimeter at room temperature gives a reading of approximately 1080 ohms on most models. A reading significantly above or below that range means the sensor needs replacement.
Oven calibration is the free fix that resolves temperature inaccuracy without any parts. Most modern ovens allow the temperature offset to be adjusted through the control panel — typically a hidden menu accessed by holding a specific button combination. If an independent oven thermometer shows the cavity consistently running 25 to 50 degrees below the set temperature and the sensor tests correctly, recalibrating the offset through the settings menu resolves it in under two minutes. Check the oven manual for the specific calibration procedure before ordering any parts.
Gas Oven Igniter Failure
A gas oven not heating up almost always comes down to the bake igniter. Modern gas ovens use a continuous glow igniter that draws current to simultaneously glow hot enough to light the gas and open the safety valve that allows gas to flow to the oven burner. A degraded igniter — one that glows orange rather than bright white — is drawing insufficient current to trigger the gas valve even though it appears to be functioning. The burner never lights, no heat reaches the cavity, and the oven runs through a full preheating cycle at ambient temperature.
From experience, the smarter move is timing the igniter glow before replacing it. A healthy igniter lights the burner within 30 to 90 seconds of the bake cycle starting. An igniter that glows for longer than 90 seconds without lighting the burner is drawing insufficient current and needs replacement regardless of whether it looks healthy visually. Confirm with a multimeter resistance test — a healthy bake igniter reads between 40 and 400 ohms. An open circuit reading means complete igniter failure.
Accessing the igniter requires removing the oven bottom panel — typically two screws at the front corners and a lift-and-slide removal. The igniter sits at the rear of the burner tube, connected by an igniter wire harness. Replacement igniters cost between fifteen and forty dollars and are model-specific. The same diagnostic process applies to the broil igniter at the top of the oven cavity if the broil cycle fails while the bake cycle works normally.
Control Board and Oven Relay Faults

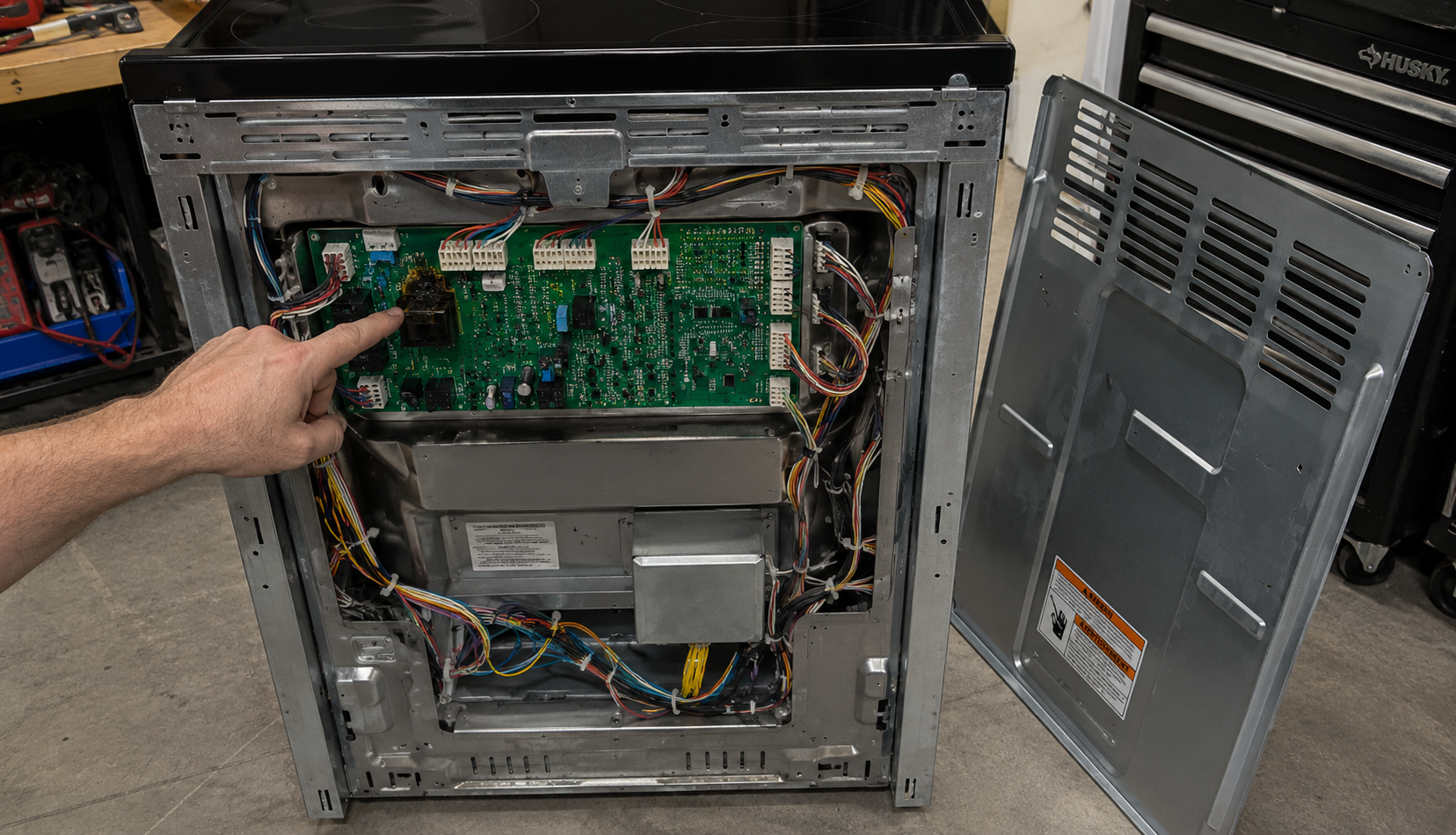

The oven control board is the brain that coordinates every heating function — it receives temperature data from the sensor, sends power signals to the bake element or bake igniter, and manages every timed bake cycle. When the control board fails, it can prevent heating in ways that look identical to element or igniter failure but don’t respond to part replacement. A burned relay on the board — the component that physically switches power to the heating circuit — is the most common board-level fault causing oven not heating up symptoms.
I’ve seen this go wrong when someone replaces a perfectly functional heating element because the board was sending no power signal to it. The new element produces exactly the same result as the old one — nothing — because the fault was never in the element. Before replacing a control board, confirm that the element or igniter is receiving power during a bake cycle using a multimeter set to AC voltage. No voltage at a healthy element means the board isn’t sending the signal, and board replacement or repair is the actual fix needed.
Control board replacement is the most expensive oven repair in this diagnostic chain — boards cost between eighty and two hundred dollars depending on brand and model. For an older oven approaching the end of its service life, the board cost versus oven replacement cost calculation is worth running before committing to the repair. For a machine under ten years old in otherwise good condition, board replacement almost always makes financial sense.
What Most People Don’t Know
The oven door seal is almost never mentioned in oven not heating up guides, and it should be. A degraded door seal — the rubber or fibreglass gasket running around the full perimeter of the oven door — allows heat to escape continuously during the bake cycle. The oven produces heat normally, the element is fine, the sensor reads correctly, but the cavity never reaches temperature because it’s losing heat faster than the element can produce it. This presents as an oven not heating up to temperature rather than no heat at all, and it’s frequently misdiagnosed as a sensor or thermostat fault. Inspect the door seal by running your hand slowly around the door perimeter while the oven is at temperature — any point where heat escapes is a seal failure. Replacement seals cost under twenty dollars on most models and clip or slide into the door channel without tools. It’s the most overlooked and cheapest fix in oven repair, and checking it takes sixty seconds.
Conclusion
An oven not heating up is almost always a single failed component — and on electric ovens, that component is the bake element in the majority of cases. Start with the circuit breaker, move to the element, test the temperature sensor, and work through the igniter if you have a gas oven. The next step is opening the oven door and inspecting that bake element visually — a visible break or burn mark tells you immediately where the fault is and gets the repair moving without any tools at all.
Frequently Asked Questions
Why is my oven not heating up?
The most common causes are a failed bake element on electric ovens, a degraded igniter on gas ovens, or a tripped circuit breaker. Start with the circuit breaker, then inspect the bake element visually for damage. A multimeter continuity test on the element or igniter confirms the diagnosis definitively.
How do I know if my oven heating element is bad?
Inspect it visually first — look for a visible break, burn mark, or blistered section on the element coil. Confirm with a multimeter continuity test at the element terminals. No continuity means the element has failed. A healthy element shows continuity and typically has no visible damage.
Can a faulty temperature sensor cause an oven not to heat?
Yes — a sensor reading significantly high tells the control board the oven has already reached temperature, so the element never runs long enough to produce actual heat. Test the sensor resistance at room temperature — it should read approximately 1080 ohms. A reading well outside that range means replacement is needed.
Why does my gas oven not heat up even though the igniter glows?
A glowing igniter that doesn’t light the burner is almost always a weak igniter drawing insufficient current to open the safety valve. Time the glow — if the burner doesn’t light within 90 seconds, the igniter is degraded and needs replacement even though it appears to be working.
Is an oven not heating up worth repairing?
In most cases, yes. A bake element costs fifteen to fifty dollars. A temperature sensor runs ten to thirty dollars. An igniter is fifteen to forty dollars. These are among the cheapest appliance repairs available. Only a control board replacement — eighty to two hundred dollars — approaches the point where oven age and replacement cost become a relevant consideration.
Why did my oven stop heating after the self-clean cycle?
The self-clean cycle runs at extremely high temperatures — high enough to blow the thermal fuse on some models. Check the thermal fuse first after a self-clean heating failure. A tripped circuit breaker is the other common cause — the high current draw of the self-clean cycle can trip a breaker that handles normal bake cycles without issue.
How do I fix an oven that heats unevenly?
Uneven heating is usually caused by a partially failed bake element producing heat from only part of the coil, a faulty temperature sensor giving inconsistent readings, or a degraded door seal losing heat from one side of the cavity. Test the element for continuity across its full length and inspect the door seal before suspecting the control board.
