A common misconception I run into constantly is that a top-load washer that won’t start or won’t spin must have a failed motor or a serious electrical problem. In my experience, the lid switch is one of the most overlooked, cheapest, and easiest components to check first — and it’s responsible for a surprisingly large share of “my washer just stopped working” complaints. This small safety component, tucked under or near the lid on most top-load machines, prevents the washer from spinning while the lid is open, protecting anyone reaching in from moving parts. When it fails, the washer can’t tell whether the lid is actually closed, and it simply refuses to run.
What the Lid Switch Actually Does
The first time I dealt with explaining this component to someone, the easiest comparison was a car’s seatbelt sensor — a small safety mechanism designed to prevent operation under unsafe conditions. The lid switch on a top-load washer detects whether the lid is closed and sends that signal to the washer’s control board. If the switch reports the lid as open, even if it’s actually closed, the washer’s control system blocks the spin cycle and often the wash cycle entirely, since allowing the drum to move with the lid open would expose moving parts to anyone reaching inside.
Most top-load washers use one of two lid switch designs: a simple mechanical switch with a small lever or actuator that the lid physically presses down when closed, or a magnetic switch that detects a magnet embedded in the lid as it closes. Front-load washers use a comparable component called a door switch or door lock assembly, which serves the same safety function but with a different mechanical design given the door’s different orientation and locking mechanism.
Understanding which type your machine uses matters for diagnosis. A mechanical switch can fail due to a broken or worn actuator lever, while a magnetic switch can fail if the magnet shifts position in the lid or the sensor itself degrades. Both produce the identical end symptom — a washer that won’t start or won’t spin — but the physical inspection differs slightly between the two designs.
Symptoms That Point to a Failed Lid Switch
From experience, the clearest sign of a failed lid switch is a washer that fills with water and may even agitate, but never reaches the spin cycle, or one that won’t start at all even though the lid is fully closed. If you can hear the washer attempting to run but it stalls out, or if it runs through part of a cycle and then stops unexpectedly, the lid switch is one of the first things worth checking before assuming a more complex fault.
Some washers display an error code specifically referencing the lid or door when this switch fails, particularly on models with digital control panels. Check your owner’s manual for any code shown, since this can confirm the diagnosis before you even open up the machine to test anything physically.
A washer that works intermittently — sometimes starting fine, other times refusing to run with no clear pattern — often points to a switch that’s failing rather than fully failed, where the contact inside is making an inconsistent connection. This intermittent behavior is actually a useful diagnostic clue, since a completely dead switch produces a much more consistent, predictable failure to start.
Locating and Visually Inspecting the Switch

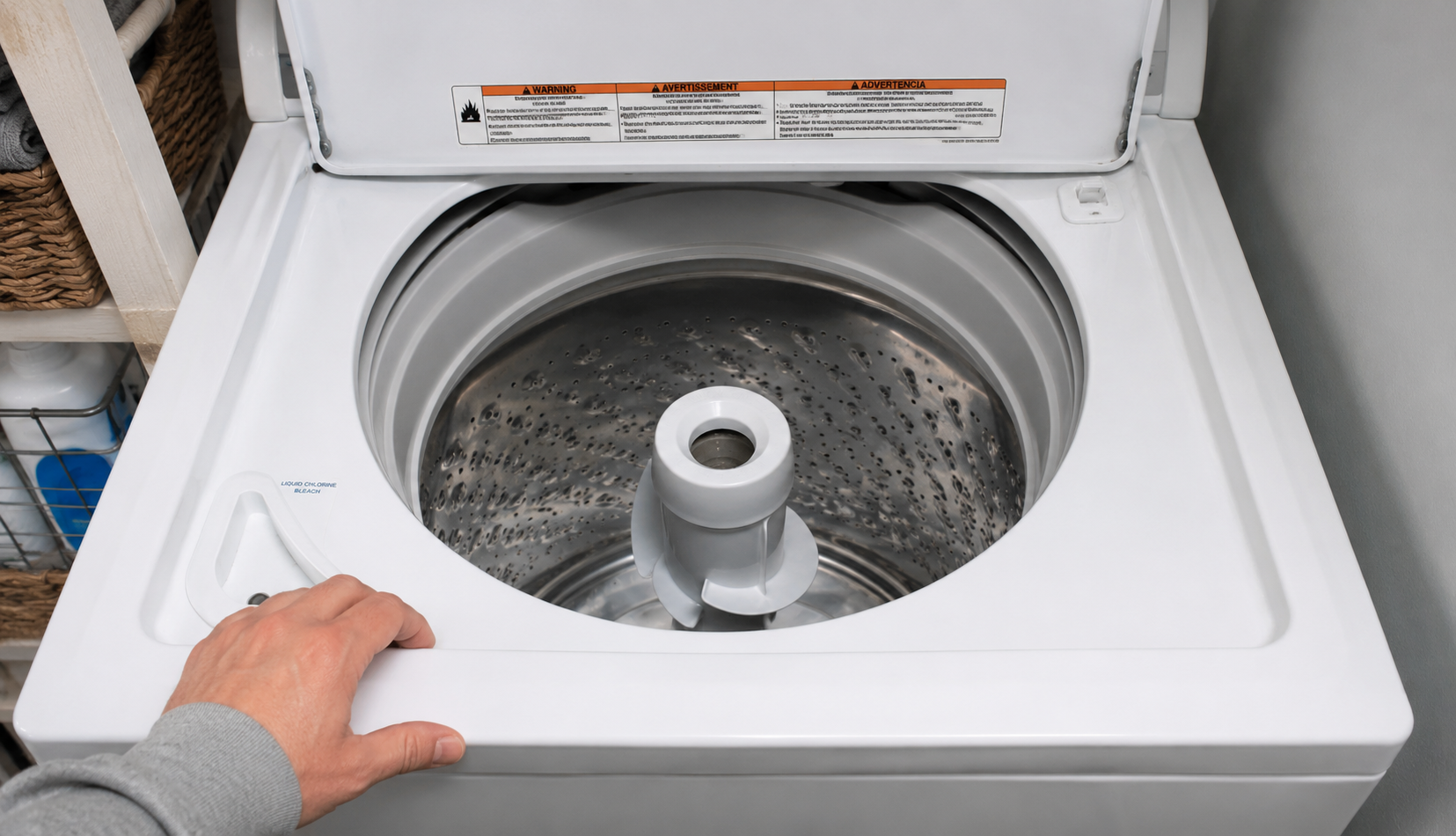

I’ve seen this go wrong when people start disassembling the whole top panel of their washer before realizing the lid switch is usually accessible without removing much at all. On most top-load washers, the lid switch sits just beneath the top edge of the cabinet, near where the lid hinges or near the front corner of the opening, depending on the specific model and design. Lifting the lid and looking along the inner rim of the cabinet opening, you’ll typically spot a small switch assembly with a lever or button that the lid presses against when closed.
Before testing anything electrically, check for obvious physical damage — a cracked switch housing, a broken or missing actuator lever, or visible corrosion on the connector terminals. Sometimes the cause is embarrassingly simple: a buildup of detergent residue or debris preventing the lid from fully depressing the switch lever, which can be cleaned away without replacing anything at all.
For magnetic lid switches, check that the magnet embedded in the lid itself hasn’t shifted or fallen out of its mounting position, since a missing or displaced magnet produces the exact same symptom as a failed sensor switch, but requires a completely different fix — repositioning or replacing the magnet rather than the switch itself.

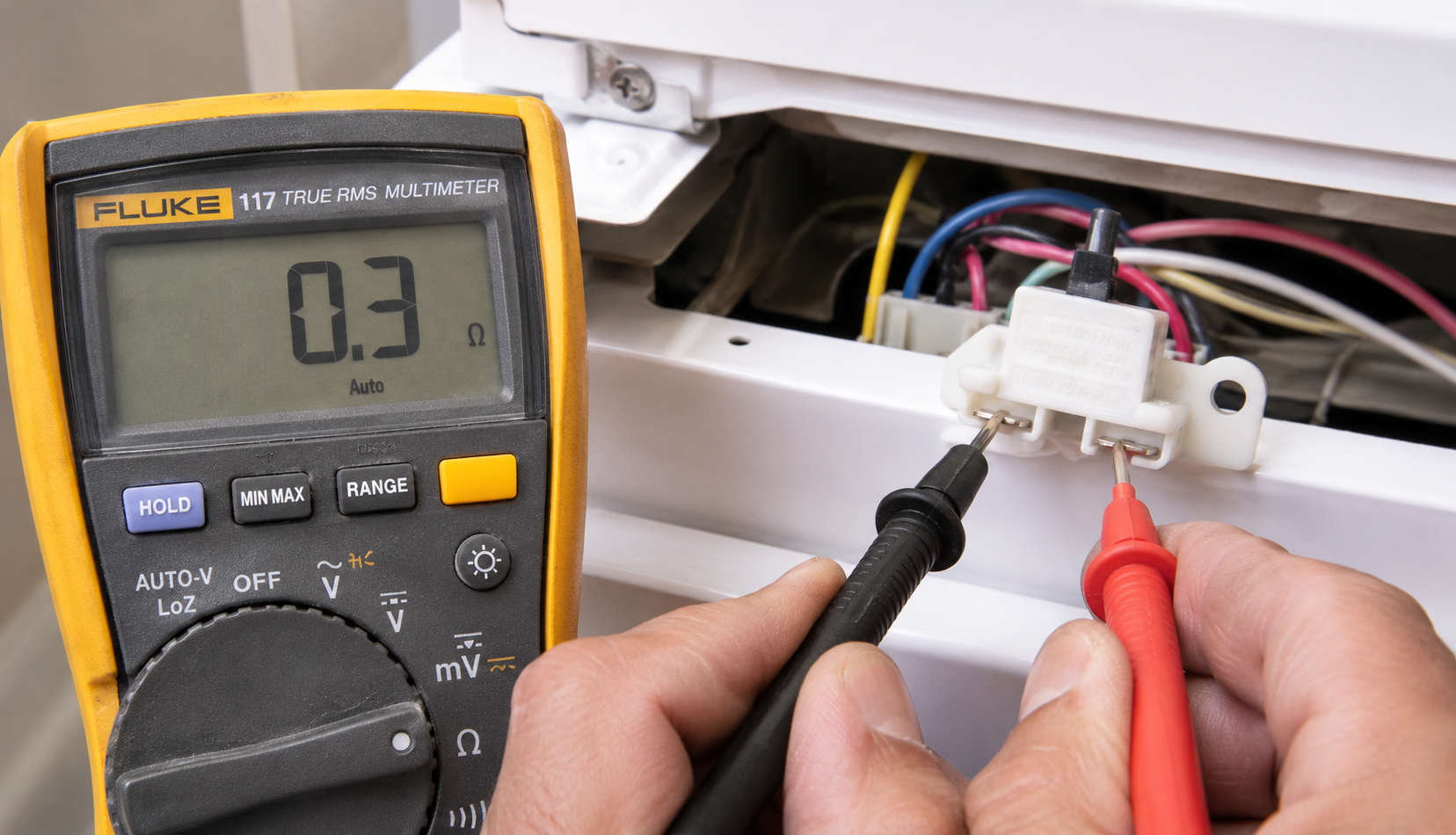

Testing the Lid Switch With a Multimeter
From experience, this is the step that actually confirms whether the switch has failed rather than just guessing based on symptoms alone. Unplug the washer completely before doing any electrical testing. Access the switch — on many models this requires removing a few screws to lift the top panel of the washer slightly, giving you access to the wiring harness connected to the switch.
Disconnect the wire harness from the switch and set your multimeter to continuity or resistance mode. With the lid open or the actuator released, the switch should show no continuity — essentially an open circuit, since the washer shouldn’t be able to run with the lid open. Manually press the actuator lever to simulate the lid closing, and the multimeter should now show continuity, confirming the switch closes the circuit properly when activated.
A switch that shows no continuity even when the actuator is pressed has failed and needs replacement. A switch that shows continuity constantly, regardless of actuator position, has also failed — stuck in a permanently closed or permanently open state, either of which prevents the washer from functioning correctly with its safety system intact.
Replacing the Lid Switch
What surprised me about this repair the first time I did it is just how quick and inexpensive it actually is compared to almost any other washer repair. Replacement lid switches cost $10–$30 for most common brands and models, and the entire replacement process typically takes under 30 minutes once you’ve located and accessed the switch.

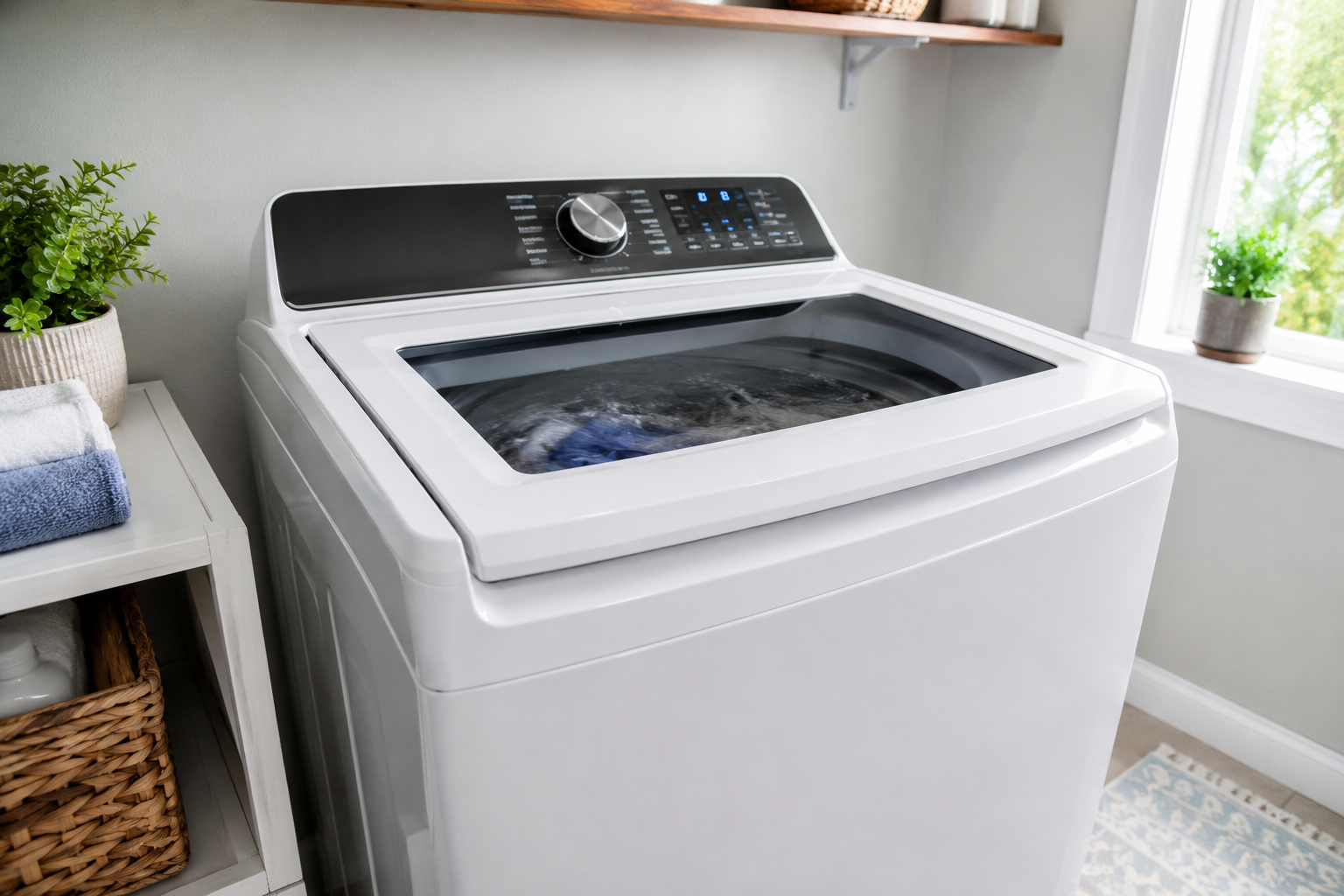

With the washer unplugged and the top panel lifted or removed according to your specific model’s design, unscrew the old switch from its mounting bracket — usually one or two screws — and disconnect the wire harness. Connect the new switch’s harness, securing the wires in the same orientation as the original connection, and screw the new switch into the same mounting position. Close the top panel, plug the washer back in, and test by closing the lid and starting a cycle to confirm the washer now runs normally through a full cycle including spin.
If you’re not entirely sure which exact replacement part fits your model, the data plate inside the lid or on the back of the washer cabinet lists the model number, which you can cross-reference against the manufacturer’s parts catalog or a major appliance parts retailer to confirm compatibility before ordering.
What Most People Don’t Know: Never Bypass a Lid Switch Permanently
Almost every general appliance forum has someone suggesting a “quick fix” of taping down or otherwise permanently bypassing a failed lid switch to get the washer running again temporarily. This is worth addressing directly: bypassing the lid switch defeats the entire safety system it’s designed to provide, allowing the drum to spin with the lid open and exposing anyone reaching into the washer to genuinely dangerous moving parts. This isn’t a reasonable temporary workaround — it’s removing a deliberate safety feature, and the small cost and short repair time for a proper replacement makes this risk entirely unnecessary to take on.
If you’re dealing with a washer that needs to run urgently before a replacement part arrives, it’s safer to simply wait or use a different machine than to disable a safety interlock, regardless of how inconvenient the delay feels in the moment.
Frequently Asked Questions
Q. How do I know if my washer’s lid switch is bad?
A. The clearest sign is a washer that fills with water and may agitate but never reaches the spin cycle, or one that won’t start at all even with the lid fully closed. Intermittent starting, where the washer sometimes runs and sometimes doesn’t with no clear pattern, also points to a failing switch.
Q. Where is the lid switch located on a top-load washer?
A. It’s typically located just beneath the top edge of the cabinet, near where the lid hinges or near the front corner of the lid opening. Lifting the lid and looking along the inner rim of the cabinet usually reveals the switch assembly directly.
Q. How do I test a washing machine lid switch?
A. Unplug the washer, disconnect the switch’s wire harness, and set a multimeter to continuity mode. With the actuator released, the switch should show no continuity. Pressing the actuator manually should produce continuity, confirming the switch closes the circuit properly when the lid is closed.
Q. How much does it cost to replace a washing machine lid switch?
A. Replacement switches cost $10–$30 for most common brands and models. The repair itself typically takes under 30 minutes once you’ve accessed the switch, making this one of the most affordable and approachable washer repairs available.
Q. Can I bypass a broken lid switch to keep using my washer?
A. This isn’t recommended. Bypassing the switch defeats the safety system that prevents the drum from spinning while the lid is open, creating a genuine safety risk to anyone reaching into the washer during operation. Given the low cost and short repair time, replacement is always the safer choice.
Q. Why does my washer work sometimes but not other times?
A. Inconsistent starting often points to a lid switch that’s failing rather than completely dead, where the internal contact makes an unreliable connection. Testing the switch with a multimeter, as described above, confirms whether this intermittent behavior is the cause.
