My Whirlpool dryer stopped heating overnight. No warning, no gradual decline — one cycle it worked, the next it ran cold. The drum spun, the timer counted down, and the clothes came out exactly as wet as they went in. I assumed the worst, but the actual diagnosis took four minutes and the fix cost eleven dollars. A blown Whirlpool dryer thermal fuse is the single most common cause of sudden heat loss on these machines, and it’s a repair that almost anyone can do at home with a screwdriver and a multimeter. This guide covers exactly where the thermal fuse is located, how to test dryer thermal fuse continuity correctly, and how to replace it step by step — including the same process for Maytag dryer thermal fuse replacement, since both brands share the same core platform.
What the Thermal Fuse Actually Does
The thermal fuse is a one-time safety device built into every dryer. Its job is simple: if the dryer overheats beyond a safe threshold, the fuse blows and permanently cuts power to the heating circuit. Unlike a circuit breaker, a blown dryer fuse doesn’t reset. Once it’s gone, the dryer produces zero heat until the fuse is physically replaced. The drum keeps spinning, the motor keeps running, and every other function operates normally — the only thing missing is heat.
This design is intentional. A dryer that overheats is a fire risk, and the thermal fuse is the last line of defence between an overheating machine and a serious household incident. The fuse sacrifices itself to protect the machine and the home. That’s worth understanding before replacing it, because a blown thermal fuse is always a symptom of something else — most commonly a blocked dryer vent or restricted airflow — and replacing the fuse without addressing the root cause means the new fuse will blow again, often within a few cycles.
The first time I dealt with this, I replaced the fuse, ran three loads, and watched the new fuse blow within a week. The dryer vent was packed with lint from a bird nest blocking the exterior cap — something I hadn’t thought to check because the machine had been working fine for years. Clear the vent blockage first, confirm airflow is restored, then replace the fuse. In that order, every time.
Most people miss this entirely: the thermal fuse location on Whirlpool and Maytag dryers is on the exhaust duct inside the back panel — not on the heating element itself. This placement is deliberate. The fuse monitors exhaust temperature, which reflects the overall thermal state of the machine more accurately than element temperature alone. When the exhaust runs hot, it means heat isn’t leaving the drum efficiently, and that’s the condition the fuse is designed to catch.
Locating the Thermal Fuse on a Whirlpool Dryer
Whirlpool dryer thermal fuse location is consistent across the brand’s most common platform — the same chassis used for Maytag, Amana, and many Kenmore machines. Unplug the dryer completely before touching anything inside. Pull the machine away from the wall and remove the back panel — typically six to eight screws around the perimeter, all Phillips head. Lift the panel away and set it aside.
With the back panel off, look for the exhaust duct running from the dryer drum toward the bottom of the cabinet where it connects to the external vent. The thermal fuse sits directly on this duct, held in place by one screw and connected by two wire terminals. It’s a small white or silver component, roughly an inch long, with two coloured wires attached. On most Whirlpool machines it sits near the bottom left of the back panel area, close to where the exhaust exits the cabinet.
What surprised me the first time was how small and unremarkable it looks — a component that costs under fifteen dollars and takes seconds to replace is responsible for shutting down the entire heating circuit. Photograph the wire connections before disconnecting anything. The two wires are interchangeable on most fuses, but a photo costs nothing and removes any uncertainty during dryer reassembly.
How to Test a Dryer Thermal Fuse With a Multimeter

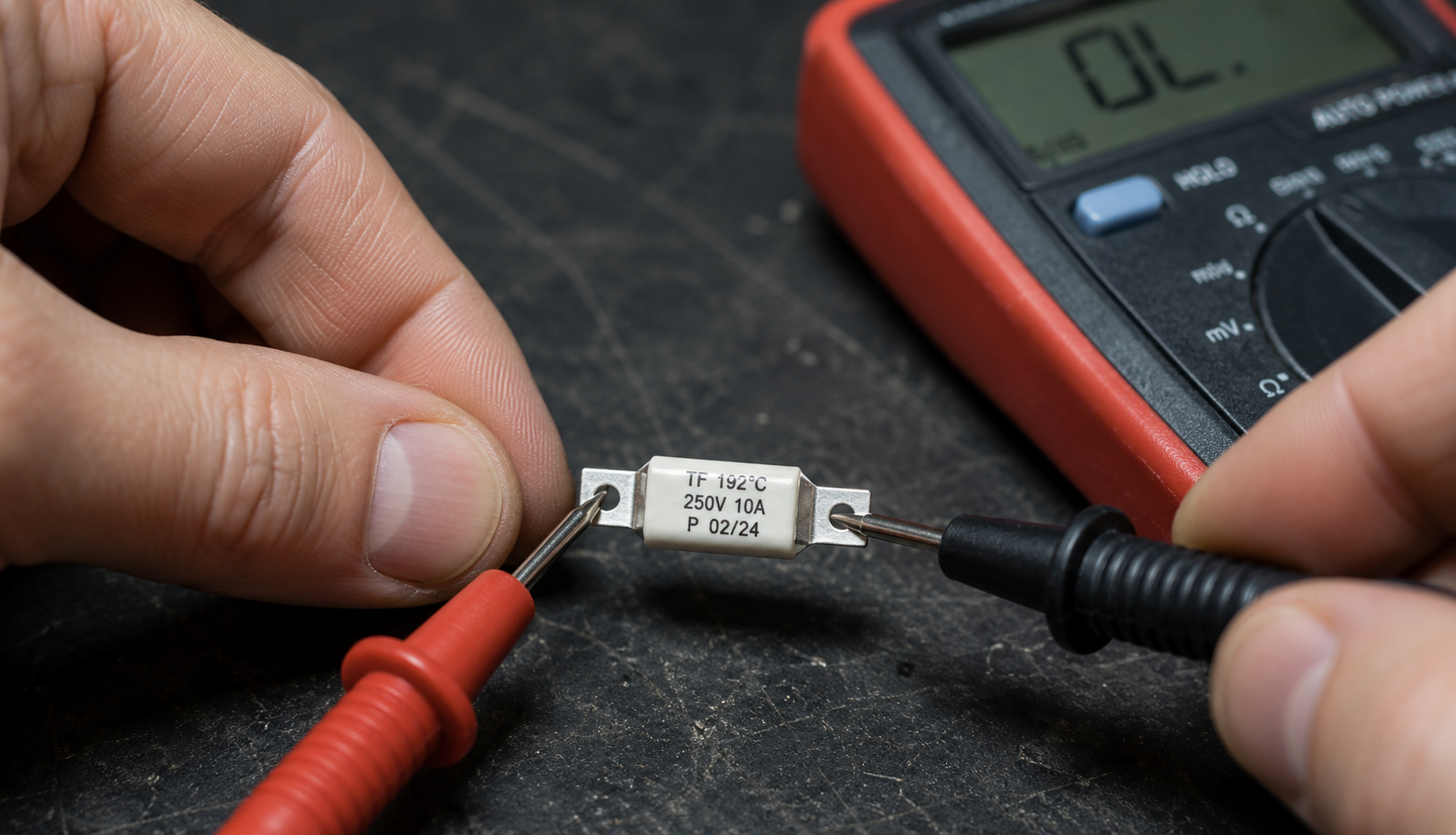

Testing the thermal fuse requires a multimeter set to the continuity setting — the mode that produces a beep or reads near-zero ohms when a circuit is complete. Disconnect the two wires from the fuse terminals, then touch one multimeter probe to each terminal on the fuse itself. A healthy thermal fuse shows continuity — the circuit is complete, current can flow. A blown dryer fuse shows no continuity — open circuit, infinite resistance, no beep. The test takes under sixty seconds and gives a definitive result.
From experience, the smarter move is testing the high-limit thermostat at the same time. The high-limit thermostat sits adjacent to the thermal fuse on most Whirlpool machines and performs a related function — it cuts the heat source if temperatures spike beyond its rated threshold, but unlike the thermal fuse it does reset. Test it for continuity using the same method. A faulty high-limit thermostat can cause symptoms similar to a blown fuse and is worth ruling out while the back panel is already off.
If you don’t own a multimeter, a basic continuity tester costs under ten dollars and does the job for this test. A multimeter is worth owning for any household that does occasional appliance repair — it’s the single most useful diagnostic tool for dryer wiring, thermostat testing, and heating element checks across every brand and model.
Maytag Dryer Thermal Fuse Replacement: Same Process, Same Parts
Maytag dryer thermal fuse replacement follows an identical process to Whirlpool because the machines share the same core dryer cabinet design, the same component layout, and in many cases the exact same dryer parts. The fuse location is the same — on the exhaust duct inside the back panel. The removal process is the same — one screw, two wire terminals. The part number may differ slightly by model year, which is why checking the dryer model number before ordering matters.
I’ve seen this go wrong when someone orders a thermal fuse by brand name rather than model number and receives a fuse with a different temperature rating. Thermal fuses are rated to blow at specific temperatures — typically between 196°F and 309°F depending on the application. Installing a fuse with the wrong temperature rating either means it blows too easily under normal operating conditions or doesn’t blow when it should, which defeats the entire safety function. Order by model number, confirm the part number matches, and the replacement fuse will be correct.
The maytag dryer thermal fuse cost and Whirlpool fuse cost are both in the ten to twenty dollar range for OEM parts. Aftermarket alternatives are available for less, but for a safety-critical component that protects against fire risk, the OEM part is worth the modest price difference.
Replacing the Thermal Fuse: Step by Step

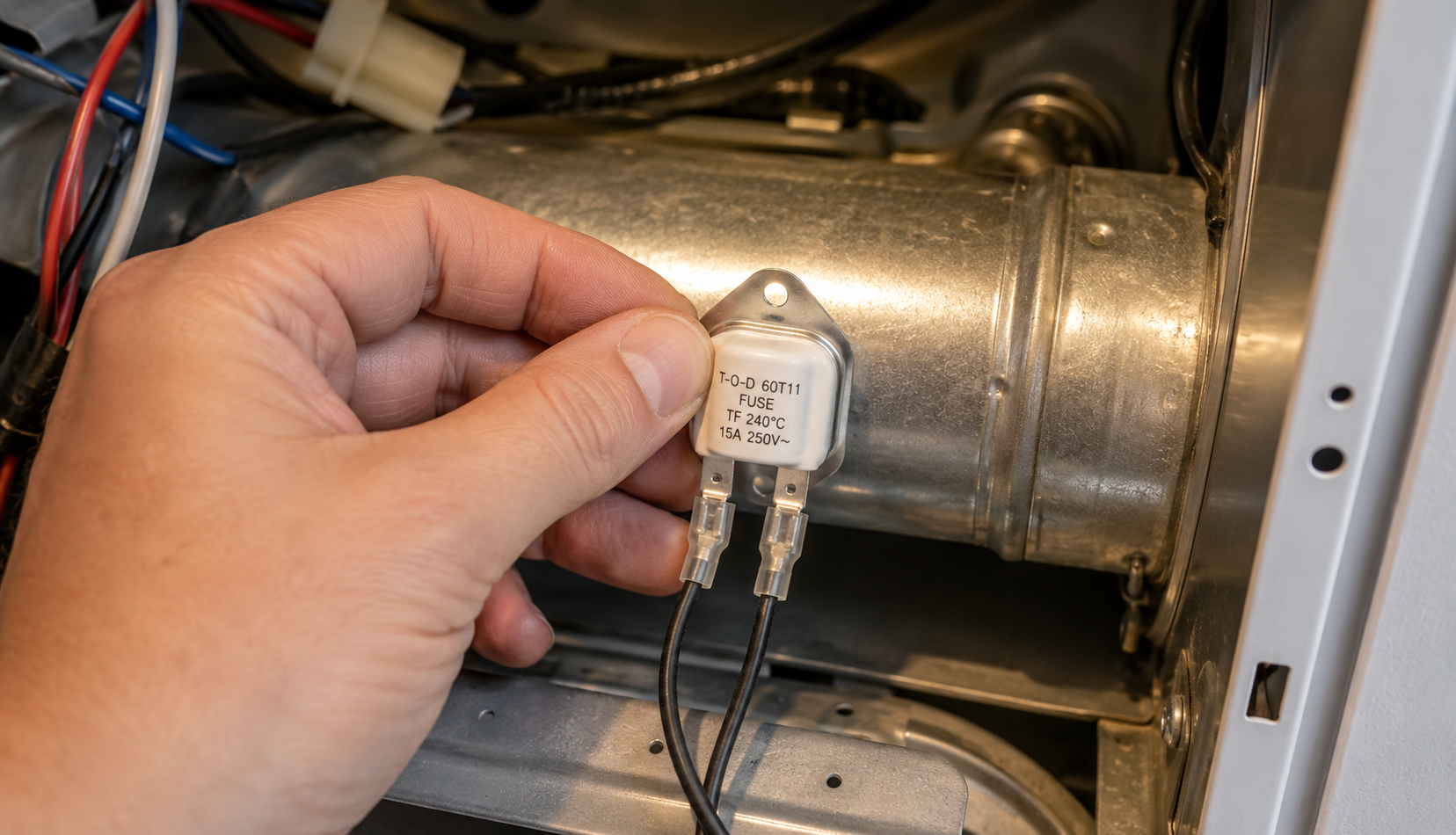

With the back panel removed and the blown fuse confirmed by multimeter test, replacement takes under ten minutes. Remove the single mounting screw holding the fuse to the exhaust duct. Pull the two wire terminals off the fuse — they slide off with firm, straight pressure. Don’t yank the wire harness itself, pull the terminal connectors.
Fit the new fuse into position on the exhaust duct — the mounting hole aligns with the screw hole on the duct bracket. Reattach the mounting screw finger-tight first, then snug it down with the screwdriver. Reconnect the two wire terminals to the fuse — they push straight onto the terminals and should click into a secure position. Reattach the back panel, push the dryer back into position, and plug it in.
Run a test cycle — empty drum, high heat setting, fifteen minutes. Stand nearby for the first few minutes and confirm heat is building inside the drum when you open the door briefly mid-cycle. If heat is present and the cycle completes normally, the repair is done. If the dryer still produces no heat after fuse replacement, the heating element or cycling thermostat needs testing — the fuse was not the only fault, or the fuse was fine and the actual problem is elsewhere in the dryer wiring.
What Most People Don’t Know
A thermal fuse that blows repeatedly — replaced, works briefly, blows again — is not a parts quality problem. It’s a ventilation problem that hasn’t been fully resolved. The most thorough vent cleaning job still misses the one location that causes the most repeat fuse failures: the transition duct between the dryer exhaust outlet and the wall connection. This short section of dryer duct — often a flexible foil accordion piece tucked behind the machine — collapses, kinks, and accumulates lint faster than the rest of the vent run because it’s constantly being compressed when the dryer is pushed back against the wall. Every time the machine is moved for cleaning or repair, the flexible section gets kinked a little more. Replace this section with a rigid 90-degree metal elbow or a semi-rigid metal transition duct and the repeat fuse failure pattern stops in the overwhelming majority of cases. It’s a five-dollar fix that prevents a recurring eleven-dollar problem and protects the machine from the thermal stress that shortens its service life.
Conclusion
A blown Whirlpool dryer thermal fuse is a cheap, fast, DIY-friendly repair — but only if the root cause gets addressed at the same time. Replace the fuse without clearing the vent blockage and you’re back to square one within days. The next step is pulling the back panel and running the continuity test — sixty seconds of testing tells you definitively whether the fuse is the problem and gets the repair moving in the right direction immediately.
Frequently Asked Questions
Where is the thermal fuse on a Whirlpool dryer?
On most Whirlpool dryers, the thermal fuse sits on the exhaust duct inside the back panel, near the bottom of the cabinet where the duct exits toward the external vent. Remove the back panel screws to access it — it’s held by one mounting screw and connected by two wire terminals.
How do I test a dryer thermal fuse?
Set a multimeter to the continuity setting. Disconnect the two wires from the fuse terminals and touch one probe to each terminal on the fuse. A healthy fuse shows continuity. A blown fuse shows no continuity — open circuit. The test takes under a minute and gives a definitive result.
Can I reset a blown thermal fuse?
No. A thermal fuse is a one-time safety device. Once it blows it cannot be reset — it must be replaced. This is by design: a resettable fuse could allow a faulty machine to keep running in an unsafe condition. Replacement is the only option.
Why does my dryer thermal fuse keep blowing?
A repeatedly blowing thermal fuse almost always means the dryer vent system has a restriction that hasn’t been fully cleared. The most common culprit is the flexible transition duct between the dryer and the wall connection — it collapses and kinks when the machine is pushed against the wall. Replace it with a rigid metal elbow to stop the cycle.
Is the Maytag dryer thermal fuse in the same location as Whirlpool?
Yes — Maytag and Whirlpool share the same dryer platform and the thermal fuse location is identical on both brands. The removal and replacement process is the same. Part numbers may differ by model year, so always order by model number rather than brand name alone.
How much does a dryer thermal fuse cost?
A replacement thermal fuse costs between ten and twenty dollars for an OEM part. Aftermarket versions are available for less, but for a safety-critical component, the OEM part is the better choice. The total repair cost including any tools needed rarely exceeds thirty dollars.
Will a dryer run with a blown thermal fuse?
Yes — the dryer will run normally in every other way. The motor operates, the drum spins, the timer counts down, and all controls function. The only thing a blown thermal fuse disables is the heating circuit. The result is a dryer that runs a full cycle at ambient temperature and produces no heat whatsoever.
